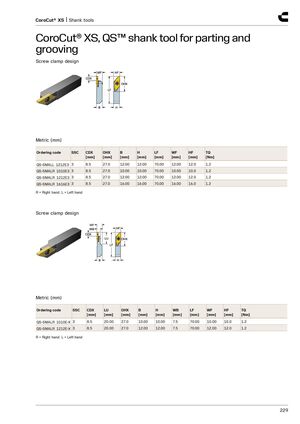

grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX | OHX | B | H | LF | WF | HF | TQ |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | ||
| QS-SMALL 1212E3 | 3 | 8.5 | 27.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 1.2 |
| QS-SMALR 1010E3 | 3 | 8.5 | 27.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 1.2 |
| QS-SMALR 1212E3 | 3 | 8.5 | 27.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 1.2 |
| QS-SMALR 1616E3 | 3 | 8.5 | 27.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 1.2 |
R = Right hand, L = Left hand
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX | LU | OHX | B | H | WB | LF | WF | HF | TQ |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | ||
| QS-SMALR 1010E-X | 3 | 8.5 | 20.00 | 27.0 | 10.00 | 10.00 | 7.5 | 70.00 | 10.00 | 10.0 | 1.2 |
| QS-SMALR 1212E-X | 3 | 8.5 | 20.00 | 27.0 | 12.00 | 12.00 | 7.5 | 70.00 | 12.00 | 12.0 | 1.2 |
R = Right hand, L = Left hand
