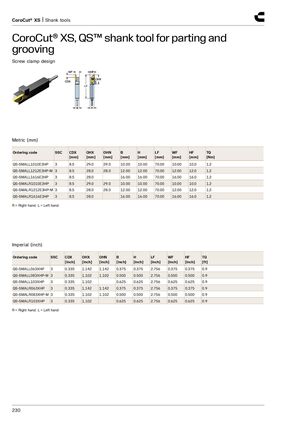

grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| QS-SMALL1010E3HP | 3 | 8.5 | 29.0 | 29.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 1.2 |
| QS-SMALL1212E3HP-M | 3 | 8.5 | 28.0 | 28.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 1.2 |
| QS-SMALL1616E3HP | 3 | 8.5 | 28.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 1.2 | |
| QS-SMALR1010E3HP | 3 | 8.5 | 29.0 | 29.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 1.2 |
| QS-SMALR1212E3HP-M | 3 | 8.5 | 28.0 | 28.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 1.2 |
| QS-SMALR1616E3HP | 3 | 8.5 | 28.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 1.2 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | TQ [ft] |
| QS-SMALL063XHP | 3 | 0.335 | 1.142 | 1.142 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 0.9 |
| QS-SMALL083XHP-M | 3 | 0.335 | 1.102 | 1.102 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 0.9 |
| QS-SMALL103XHP | 3 | 0.335 | 1.102 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 0.9 | |
| QS-SMALR063XHP | 3 | 0.335 | 1.142 | 1.142 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 0.9 |
| QS-SMALR083XHP-M | 3 | 0.335 | 1.102 | 1.102 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 0.9 |
| QS-SMALR103XHP | 3 | 0.335 | 1.102 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 0.9 |
R = Right hand, L = Left hand
