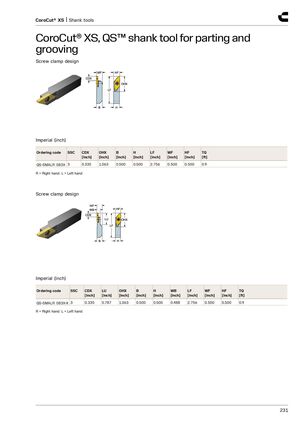

grooving
Screw clamp design
Imperial (inch)
| Ordering code | SSC | CDX | OHX | B | H | LF | WF | HF | TQ |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | ||
| QS-SMALR 083X | 3 | 0.335 | 1.063 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 0.9 |
R = Right hand, L = Left hand
Screw clamp design
Imperial (inch)
| Ordering code | SSC | CDX | LU | OHX | B | H | WB | LF | WF | HF | TQ |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | ||
| QS-SMALR 083X-X | 3 | 0.335 | 0.787 | 1.063 | 0.500 | 0.500 | 0.488 | 2.756 | 0.500 | 0.500 | 0.9 |
R = Right hand, L = Left hand
