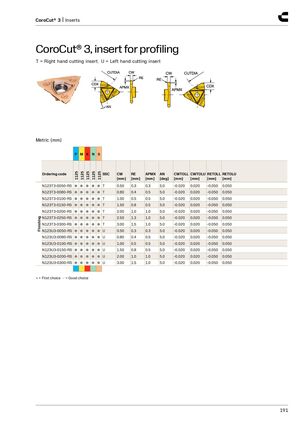

CoroCut® 3, insert for profiling
T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N | S | |||||||||
| Ordering code | 1125 | 1125 1125 | 1125 | 1125 SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | |
| N123T3-0050-RS | ● | ● | ● | ● | ●T | 0.50 | 0.3 | 0.3 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123T3-0080-RS | ● | ● | ● | ● | ●T | 0.80 | 0.4 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123T3-0100-RS | ● | ● | ● | ● | ●T | 1.00 | 0.5 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123T3-0150-RS | ● | ● | ● | ● | ●T | 1.50 | 0.8 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123T3-0200-RS | ● | ● | ● | ● | ●T | 2.00 | 1.0 | 1.0 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| ing N123T3-0250-RS | ● | ● | ● | ● | ●T | 2.50 | 1.3 | 1.0 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| nish N123T3-0300-RS | ● | ● | ● | ● | ●T | 3.00 | 1.5 | 1.0 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| Fi N123U3-0050-RS | ● | ● | ● | ● | ●U | 0.50 | 0.3 | 0.3 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123U3-0080-RS | ● | ● | ● | ● | ●U | 0.80 | 0.4 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123U3-0100-RS | ● | ● | ● | ● | ●U | 1.00 | 0.5 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123U3-0150-RS | ● | ● | ● | ● | ●U | 1.50 | 0.8 | 0.5 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123U3-0200-RS | ● | ● | ● | ● | ●U | 2.00 | 1.0 | 1.0 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| N123U3-0300-RS | ● | ● | ● | ● | ●U | 3.00 | 1.5 | 1.0 | 5.0 | -0.020 | 0.020 | -0.050 | 0.050 |
- = First choice ○ = Good choice
