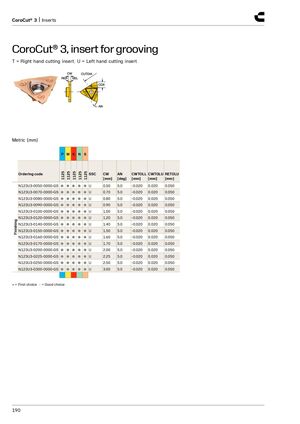

CoroCut® 3, insert for grooving
T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N | S | |||||||
| Ordering code | 1125 | 1125 | 1125 | 1125 | 1125 | SSC | CW [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLU [mm] |
| N123U3-0050-0000-GS | ● | ● | ● | ● | ● | U | 0.50 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0070-0000-GS | ● | ● | ● | ● | ● | U | 0.70 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0080-0000-GS | ● | ● | ● | ● | ● | U | 0.80 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0090-0000-GS | ● | ● | ● | ● | ● | U | 0.90 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0100-0000-GS | ● | ● | ● | ● | ● | U | 1.00 | 5.0 | -0.020 | 0.020 | 0.050 |
| g N123U3-0120-0000-GS | ● | ● | ● | ● | ● | U | 1.20 | 5.0 | -0.020 | 0.020 | 0.050 |
| shin N123U3-0140-0000-GS | ● | ● | ● | ● | ● | U | 1.40 | 5.0 | -0.020 | 0.020 | 0.050 |
| Fini N123U3-0150-0000-GS | ● | ● | ● | ● | ● | U | 1.50 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0160-0000-GS | ● | ● | ● | ● | ● | U | 1.60 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0170-0000-GS | ● | ● | ● | ● | ● | U | 1.70 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0200-0000-GS | ● | ● | ● | ● | ● | U | 2.00 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0225-0000-GS | ● | ● | ● | ● | ● | U | 2.25 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0250-0000-GS | ● | ● | ● | ● | ● | U | 2.50 | 5.0 | -0.020 | 0.020 | 0.050 |
| N123U3-0300-0000-GS | ● | ● | ● | ● | ● | U | 3.00 | 5.0 | -0.020 | 0.020 | 0.050 |
- = First choice ○ = Good choice
