General information | Coolant supply information

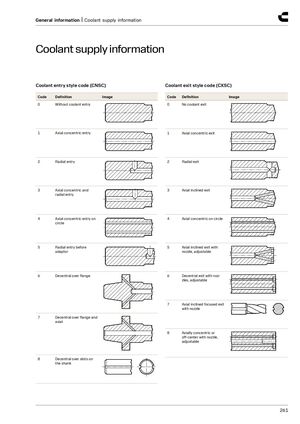

Coolant supply information

Coolant entry style code (CNSC) Coolant exit style code (CXSC)

CodeDefinitionImageCodeDefinitionImage
0Without coolant entry0No coolant exit

1 Axial concentric entry 1 Axial concentric exit

2 Radial entry 2 Radial exit

3 Axial concentric and 3 Axial inclined exit

radial entry

4 Axial concentric entry on 4 Axial concentric on circle

circle

5 Radial entry before 5 Axial inclined exit with

adaptor nozzle, adjustable

6 Decentral over flange 6 Decentral exit with noz-

zles, adjustable

7 Decentral over flange and axial

7 Axial inclined focused exit with nozzle

8 Axially concentric or off-center with nozzle, adjustable

8 Decentral over slots on the shank
