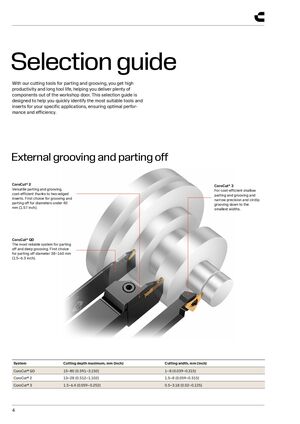

Selection guide
With our cutting tools for parting and grooving, you get high
productivity and long tool life, helping you deliver plenty of
components out of the workshop door. This selection guide is
designed to help you quickly identify the most suitable tools and
inserts for your specific applications, ensuring optimal perfor-
mance and efficiency.
External grooving and parting off
| CoroCut® 2 | CoroCut® 3 |
| Versatile parting and grooving, | For cost-efficient shallow |
| cost-efficient thanks to two-edged | parting and grooving and |
| inserts. First choice for grooving and | narrow precision and circlip |
| parting off for diameters under 40 | grooving down to the |
| mm (1.57 inch). | smallest widths. |
CoroCut® QD The most reliable system for parting off and deep grooving. First choice for parting off diameter 38–160 mm (1.5–6.3 inch).
| System | Cutting depth maximum, mm (inch) | Cutting width , mm (inch) |
| CoroCut® QD | 15–80 (0.591–3.150) | 1–8 (0.039–0.315) |
| CoroCut® 2 | 13–28 (0.512–1.102) | 1.5–8 (0.059–0.315) |
| CoroCut® 3 | 1.5–6.4 (0.059–0.252) | 0.5–3.18 (0.02–0.125) |
