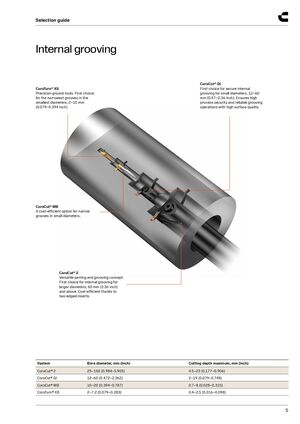

Internal grooving
CoroCut® QI
| CoroTurn® XS | First choice for secure internal |
| Precision-ground tools. First choice | grooving for small diameters, 12–60 |
| for the narrowest grooves in the | mm (0.47–2.36 inch). Ensures high |
| smallest diameters, 2–10 mm | process security and reliable grooving |
| (0.079–0.394 inch). | operations with high surface quality. |
CoroCut® MB A cost-efficient option for narrow grooves in small diameters.
CoroCut® 2 Versatile parting and grooving concept. First choice for internal grooving for larger diameters, 60 mm (2.36 inch) and above. Cost-efficient thanks to two-edged inserts.
| System | Bore diameter, mm (inch) | Cutting depth maximum, mm (inch) |
| CoroCut® 2 | 25–150 (0.984–5.905) | 4.5–23 (0.177–0.906) |
| CoroCut® QI | 12–60 (0.472–2.362) | 2–19 (0.079–0.748) |
| CoroCut® MB | 10–20 (0.394–0.787) | 0.7–8 (0.028–0.315) |
| CoroTurn® XS | 2–7.2 (0.079–0.283) | 0.4–2.5 (0.016–0.098) |
