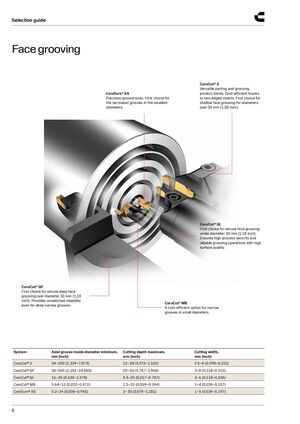

Face grooving
CoroCut® 2 Versatile parting and grooving
| CoroTurn® XS | product family. Cost-efficient thanks |
| Precision-ground tools. First choice for | to two-edged inserts. First choice for |
| the narrowest grooves in the smallest | shallow face grooving for diameters |
| diameters. | over 35 mm (1.38 inch). |
CoroCut® QI First choice for secure face grooving under diameter 30 mm (1.18 inch). Ensures high process security and reliable grooving operations with high surface quality.
CoroCut® QF First choice for secure deep face grooving over diameter 30 mm (1.18 inch). Provides unmatched reliability even for deep narrow grooves.
CoroCut® MB A cost-efficient option for narrow grooves in small diameters.
| System | Axial groove inside diameter minimum, mm(inch) | Cutting depth maximum, mm(inch) | Cutting width, mm(inch) |
| CoroCut® 2 | 34–200 (1.339–7.874) | 12–28 (0.472–1.102) | 2.5–8 (0.098–0.315) |
| CoroCut® QF | 30–500 (1.181–19.685) | 20–50 (0.787–1.968) | 3–8 (0.118–0.315) |
| CoroCut® QI | 16–35 (0.630–1.378) | 5.5–20 (0.217–0.787) | 3–6 (0.118–0.236) |
| CoroCut® MB | 5.64–12 (0.222–0.472) | 1.5–10 (0.059–0.394) | 1–4 (0.039–0.157) |
| CoroTurn® XS | 0.2–24 (0.008–0.945) | 2–30 (0.079–1.181) | 1–5 (0.039–0.197) |
