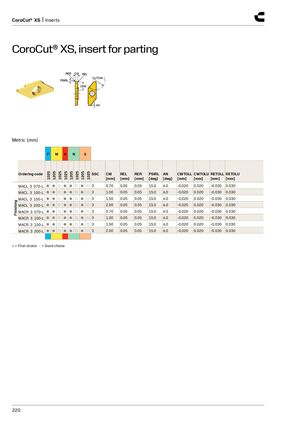

CoroCut® XS, insert for parting
Metric (mm)
| P M | K | N | S | |||||||||||||
| Ordering code | 1025 1205 1025 | 1025 | 1205 | 1025 | 1205 | 1025 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRL [deg] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | |
| MACL 3 070-L | ●●○ | ●● | ○ | ● | ○3 | 0.70 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACL 3 100-L | ●●○ | ●● | ○ | ● | ○3 | 1.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| g MACL 3 150-L | ●●○ | ●● | ○ | ● | ○3 | 1.50 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| shin MACL 3 200-L | ●●○ | ●● | ○ | ● | ○3 | 2.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| Fini MACR 3 070-L | ●●○ | ●● | ○ | ● | ○3 | 0.70 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 100-L | ●●○ | ●● | ○ | ● | ○3 | 1.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 150-L | ●●○ | ●● | ○ | ● | ○3 | 1.50 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 200-L | ●●○ | ●● | ○ | ● | ○3 | 2.00 | 0.05 | 0.05 | 15.0 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
- = First choice ○ = Good choice
