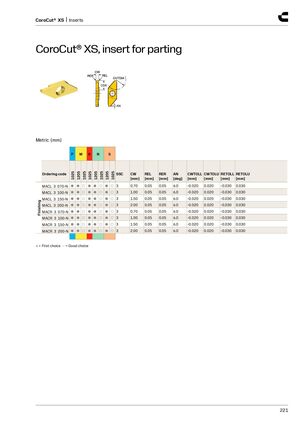

CoroCut® XS, insert for parting
Metric (mm)
| P | M | K | N | S | |||||||||||||||
| Ordering code | 1025 | 1205 | 1025 | 1025 | 1205 | 1025 | 1205 | 1025 | SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | ||
| MACL 3 070-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 0.70 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACL 3 100-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 1.00 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| g MACL 3 150-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 1.50 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| hin MACL 3 200-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 2.00 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| Finis MACR 3 070-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 0.70 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 100-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 1.00 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 150-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 1.50 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 | ||
| MACR 3 200-N | ● | ● | ○ | ● | ● | ○ | ● | ○ | 3 | 2.00 | 0.05 | 0.05 | 6.0 | -0.020 | 0.020 | -0.030 | 0.030 |
- = First choice ○ = Good choice
