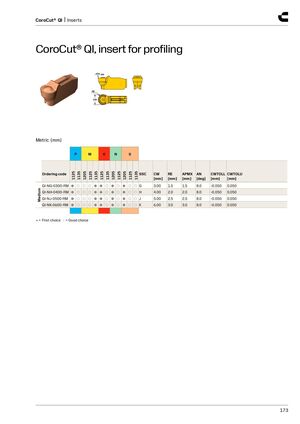

CoroCut® QI, insert for profiling
Metric (mm)
| P | M | K | N | S | ||||||||||||||||||
| Ordering code | 1125 | 1135 | 1205 | 1125 | 1135 | 1125 | 1135 | 1205 | 1125 | 1205 | 1125 | 1135 | SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | |||
| QI-NG-0300-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○ | G | 3.00 | 1.5 | 1.5 | 8.0 | -0.050 | 0.050 | |||
| ium QI-NH-0400-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○ | H | 4.00 | 2.0 | 2.0 | 8.0 | -0.050 | 0.050 | |||
| Med QI-NJ-0500-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○ | J | 5.00 | 2.5 | 2.5 | 8.0 | -0.050 | 0.050 | |||
| QI-NK-0600-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○ | K | 6.00 | 3.0 | 3.0 | 8.0 | -0.050 | 0.050 |
- = First choice ○ = Good choice
