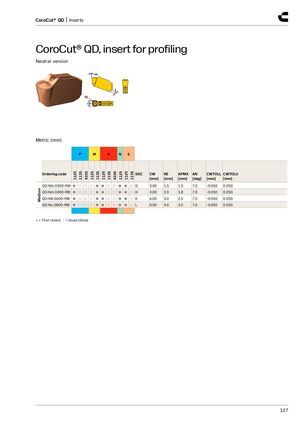

CoroCut® QD, insert for profiling
Neutral version
Metric (mm)
| P | M | K | N | S | ||||||||||||||||
| Ordering code | 1125 | 1135 | 4335 | 1125 | 1135 | 1125 | 1135 | 4335 | 1125 | 1125 | 1135 SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | |||
| QD-NG-0300-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ○ | ● | ● | ○G | 3.00 | 1.5 | 1.3 | 7.0 | -0.050 | 0.050 | |||
| ium QD-NH-0400-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ○ | ● | ● | ○H | 4.00 | 2.0 | 1.8 | 7.0 | -0.050 | 0.050 | |||
| Med QD-NK-0600-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ○ | ● | ● | ○K | 6.00 | 3.0 | 2.5 | 7.0 | -0.050 | 0.050 | |||
| QD-NL-0800-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ○ | ● | ● | ○L | 8.00 | 4.0 | 3.5 | 7.0 | -0.050 | 0.050 |
- = First choice ○ = Good choice
