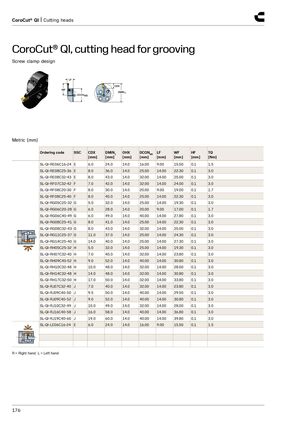

CoroCut® QI, cutting head for grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| SL-QI-RE06C16-24 E | 6.0 | 24.0 | 14.0 | 16.00 | 9.00 | 15.50 | 0.1 | 1.5 |
| SL-QI-RE08C25-36 E | 8.0 | 36.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-RE08C32-43 E | 8.0 | 43.0 | 14.0 | 32.00 | 14.00 | 25.00 | 0.1 | 3.0 |
| SL-QI-RF07C32-42 F | 7.0 | 42.0 | 14.0 | 32.00 | 14.00 | 24.00 | 0.1 | 3.0 |
| SL-QI-RF08C20-30 F | 8.0 | 30.0 | 14.0 | 20.00 | 9.00 | 19.00 | 0.1 | 1.7 |
| SL-QI-RF08C25-40 F | 8.0 | 40.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-RG05C25-32 G | 5.0 | 32.0 | 14.0 | 25.00 | 14.00 | 19.30 | 0.1 | 3.0 |
| SL-QI-RG06C20-28 G | 6.0 | 28.0 | 14.0 | 20.00 | 9.00 | 17.00 | 0.1 | 1.7 |
| SL-QI-RG06C40-49 G | 6.0 | 49.0 | 14.0 | 40.00 | 14.00 | 27.80 | 0.1 | 3.0 |
| SL-QI-RG08C25-41 G | 8.0 | 41.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-RG08C32-43 G | 8.0 | 43.0 | 14.0 | 32.00 | 14.00 | 25.00 | 0.1 | 3.0 |
| SL-QI-RG11C25-37 G | 11.0 | 37.0 | 14.0 | 25.00 | 14.00 | 24.30 | 0.1 | 3.0 |
| SL-QI-RG14C25-40 G | 14.0 | 40.0 | 14.0 | 25.00 | 14.00 | 27.30 | 0.1 | 3.0 |
| SL-QI-RH05C25-32 H | 5.0 | 32.0 | 14.0 | 25.00 | 14.00 | 19.30 | 0.1 | 3.0 |
| SL-QI-RH07C32-40 H | 7.0 | 40.0 | 14.0 | 32.00 | 14.00 | 23.80 | 0.1 | 3.0 |
| SL-QI-RH09C40-52 H | 9.0 | 52.0 | 14.0 | 40.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-RH10C32-48 H | 10.0 | 48.0 | 14.0 | 32.00 | 14.00 | 28.00 | 0.1 | 3.0 |
| SL-QI-RH14C32-48 H | 14.0 | 48.0 | 14.0 | 32.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-RH17C32-50 H | 17.0 | 50.0 | 14.0 | 32.00 | 14.00 | 33.80 | 0.1 | 3.0 |
| SL-QI-RJ07C32-40 J | 7.0 | 40.0 | 14.0 | 32.00 | 14.00 | 23.80 | 0.1 | 3.0 |
| SL-QI-RJ09C40-50 J | 9.5 | 50.0 | 14.0 | 40.00 | 14.00 | 29.50 | 0.1 | 3.0 |
| SL-QI-RJ09C40-52 J | 9.0 | 52.0 | 14.0 | 40.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-RJ10C32-49 J | 10.0 | 49.0 | 14.0 | 32.00 | 14.00 | 28.00 | 0.1 | 3.0 |
| SL-QI-RJ16C40-58 J | 16.0 | 58.0 | 14.0 | 40.00 | 14.00 | 36.80 | 0.1 | 3.0 |
| SL-QI-RJ19C40-60 J | 19.0 | 60.0 | 14.0 | 40.00 | 14.00 | 39.80 | 0.1 | 3.0 |
| SL-QI-LE06C16-24 E | 6.0 | 24.0 | 14.0 | 16.00 | 9.00 | 15.50 | 0.1 | 1.5 |
R = Right hand, L = Left hand
