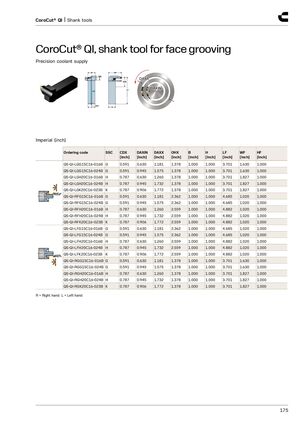

CoroCut® QI | Shank tools
CoroCut® QI, shank tool for face grooving
Precision coolant supply
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] |
| QS-QI-LGG15C16-016B | G | 0.591 | 0.630 | 1.181 | 1.378 | 1.000 | 1.000 | 3.701 | 1.630 | 1.000 |
| QS-QI-LGG15C16-024B | G | 0.591 | 0.945 | 1.575 | 1.378 | 1.000 | 1.000 | 3.701 | 1.630 | 1.000 |
| QS-QI-LGH20C16-016B | H | 0.787 | 0.630 | 1.260 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
| QS-QI-LGH20C16-024B | H | 0.787 | 0.945 | 1.732 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
| QS-QI-LGK20C16-023B | K | 0.787 | 0.906 | 1.772 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
| QS-QI-RFG15C16-016B | G | 0.591 | 0.630 | 1.181 | 2.362 | 1.000 | 1.000 | 4.685 | 1.020 | 1.000 |
| QS-QI-RFG15C16-024B | G | 0.591 | 0.945 | 1.575 | 2.362 | 1.000 | 1.000 | 4.685 | 1.020 | 1.000 |
| QS-QI-RFH20C16-016B | H | 0.787 | 0.630 | 1.260 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-RFH20C16-024B | H | 0.787 | 0.945 | 1.732 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-RFK20C16-023B | K | 0.787 | 0.906 | 1.772 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-LFG15C16-016B | G | 0.591 | 0.630 | 1.181 | 2.362 | 1.000 | 1.000 | 4.685 | 1.020 | 1.000 |
| QS-QI-LFG15C16-024B | G | 0.591 | 0.945 | 1.575 | 2.362 | 1.000 | 1.000 | 4.685 | 1.020 | 1.000 |
| QS-QI-LFH20C16-016B | H | 0.787 | 0.630 | 1.260 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-LFH20C16-024B | H | 0.787 | 0.945 | 1.732 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-LFK20C16-023B | K | 0.787 | 0.906 | 1.772 | 2.559 | 1.000 | 1.000 | 4.882 | 1.020 | 1.000 |
| QS-QI-RGG15C16-016B | G | 0.591 | 0.630 | 1.181 | 1.378 | 1.000 | 1.000 | 3.701 | 1.630 | 1.000 |
| QS-QI-RGG15C16-024B | G | 0.591 | 0.945 | 1.575 | 1.378 | 1.000 | 1.000 | 3.701 | 1.630 | 1.000 |
| QS-QI-RGH20C16-016B | H | 0.787 | 0.630 | 1.260 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
| QS-QI-RGH20C16-024B | H | 0.787 | 0.945 | 1.732 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
| QS-QI-RGK20C16-023B | K | 0.787 | 0.906 | 1.772 | 1.378 | 1.000 | 1.000 | 3.701 | 1.827 | 1.000 |
R = Right hand, L = Left hand
