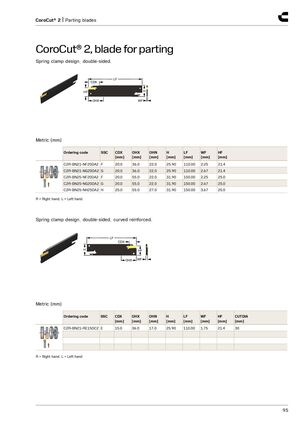

CoroCut® 2, blade for parting
Spring clamp design, double-sided.
LF CDX HF H OHX WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| C2R-BN21-NF20DA2 | F | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 2.25 | 21.4 |
| C2R-BN21-NG20DA2 | G | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 2.67 | 21.4 |
| C2R-BN25-NF20DA2 | F | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 2.25 | 25.0 |
| C2R-BN25-NG20DA2 | G | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 2.67 | 25.0 |
| C2R-BN25-NH25DA2 | H | 25.0 | 55.0 | 27.0 | 31.90 | 150.00 | 3.67 | 25.0 |
R = Right hand, L = Left hand Spring clamp design, double-sided, curved reinforced.
LF CDX H HF OHX WF
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF | CUTDIA |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| C2R-BN21-RE15DC2 | E | 15.0 | 36.0 | 17.0 | 25.90 | 110.00 | 1.75 | 21.4 | 30 |
R = Right hand, L = Left hand
