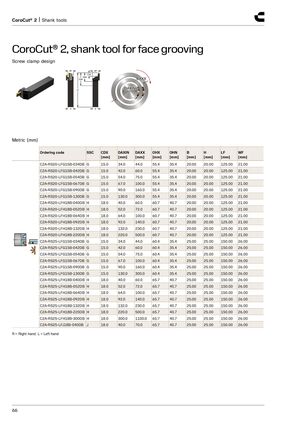

CoroCut® 2, shank tool for face grooving
Screw clamp design
HF WF CDX OHN OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-RS20-LFG15B-034DB | G | 15.0 | 34.0 | 44.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFG15B-042DB | G | 15.0 | 42.0 | 60.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFG15B-054DB | G | 15.0 | 54.0 | 75.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFG15B-067DB | G | 15.0 | 67.0 | 100.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFG15B-090DB | G | 15.0 | 90.0 | 160.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFG15B-130DB | G | 15.0 | 130.0 | 300.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-040DB | H | 18.0 | 40.0 | 60.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-052DB | H | 18.0 | 52.0 | 72.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-064DB | H | 18.0 | 64.0 | 100.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-092DB | H | 18.0 | 92.0 | 140.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-132DB | H | 18.0 | 132.0 | 230.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-LFH18B-220DB | H | 18.0 | 220.0 | 500.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS25-LFG15B-034DB | G | 15.0 | 34.0 | 44.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFG15B-042DB | G | 15.0 | 42.0 | 60.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFG15B-054DB | G | 15.0 | 54.0 | 75.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFG15B-067DB | G | 15.0 | 67.0 | 100.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFG15B-090DB | G | 15.0 | 90.0 | 160.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFG15B-130DB | G | 15.0 | 130.0 | 300.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-040DB | H | 18.0 | 40.0 | 60.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-052DB | H | 18.0 | 52.0 | 72.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-064DB | H | 18.0 | 64.0 | 100.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-092DB | H | 18.0 | 92.0 | 140.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-132DB | H | 18.0 | 132.0 | 230.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-220DB | H | 18.0 | 220.0 | 500.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFH18B-300DB | H | 18.0 | 300.0 | 1100.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFJ18B-040DB | J | 18.0 | 40.0 | 70.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
R = Right hand, L = Left hand
