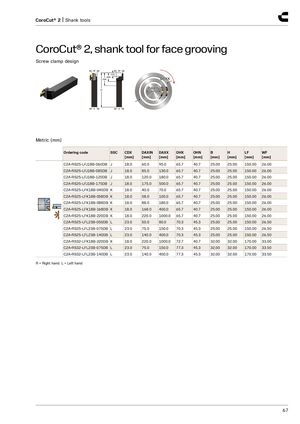

CoroCut® 2, shank tool for face grooving
Screw clamp design
HF WF CDX OHN OHX
LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-RS25-LFJ18B-060DB | J | 18.0 | 60.0 | 95.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFJ18B-085DB | J | 18.0 | 85.0 | 130.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFJ18B-120DB | J | 18.0 | 120.0 | 180.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFJ18B-175DB | J | 18.0 | 175.0 | 500.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFK18B-040DB | K | 18.0 | 40.0 | 70.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFK18B-058DB | K | 18.0 | 58.0 | 100.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFK18B-088DB | K | 18.0 | 88.0 | 180.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFK18B-168DB | K | 18.0 | 168.0 | 400.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFK18B-220DB | K | 18.0 | 220.0 | 1000.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-LFL23B-050DB | L | 23.0 | 50.0 | 80.0 | 70.3 | 45.3 | 25.00 | 25.00 | 150.00 | 26.50 |
| C2A-RS25-LFL23B-075DB | L | 23.0 | 75.0 | 150.0 | 70.3 | 45.3 | 25.00 | 25.00 | 150.00 | 26.50 |
| C2A-RS25-LFL23B-140DB | L | 23.0 | 140.0 | 400.0 | 70.3 | 45.3 | 25.00 | 25.00 | 150.00 | 26.50 |
| C2A-RS32-LFK18B-220DB | K | 18.0 | 220.0 | 1000.0 | 72.7 | 40.7 | 32.00 | 32.00 | 170.00 | 33.00 |
| C2A-RS32-LFL23B-075DB | L | 23.0 | 75.0 | 150.0 | 77.3 | 45.3 | 32.00 | 32.00 | 170.00 | 33.50 |
| C2A-RS32-LFL23B-140DB | L | 23.0 | 140.0 | 400.0 | 77.3 | 45.3 | 32.00 | 32.00 | 170.00 | 33.50 |
R = Right hand, L = Left hand
