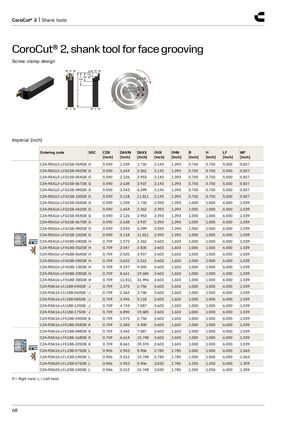

CoroCut® 2, shank tool for face grooving
Screw clamp design
HF WF CDX OHN OHX
LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] |
| C2A-RSA12-LFG15B-034DB | G | 0.590 | 1.339 | 1.732 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA12-LFG15B-042DB | G | 0.590 | 1.654 | 2.362 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA12-LFG15B-054DB | G | 0.590 | 2.126 | 2.953 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA12-LFG15B-067DB | G | 0.590 | 2.638 | 3.937 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA12-LFG15B-090DB | G | 0.590 | 3.543 | 6.299 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA12-LFG15B-130DB | G | 0.590 | 5.118 | 11.811 | 2.143 | 1.393 | 0.750 | 0.750 | 5.000 | 0.827 |
| C2A-RSA16-LFG15B-034DB | G | 0.590 | 1.339 | 1.732 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFG15B-042DB | G | 0.590 | 1.654 | 2.362 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFG15B-054DB | G | 0.590 | 2.126 | 2.953 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFG15B-067DB | G | 0.590 | 2.638 | 3.937 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFG15B-090DB | G | 0.590 | 3.543 | 6.299 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFG15B-130DB | G | 0.590 | 5.118 | 11.811 | 2.393 | 1.393 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-040DB | H | 0.709 | 1.575 | 2.362 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-052DB | H | 0.709 | 2.047 | 2.835 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-064DB | H | 0.709 | 2.520 | 3.937 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-092DB | H | 0.709 | 3.622 | 5.512 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-132DB | H | 0.709 | 5.197 | 9.055 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-220DB | H | 0.709 | 8.661 | 19.685 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFH18B-300DB | H | 0.709 | 11.811 | 31.496 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFJ18B-040DB | J | 0.709 | 1.575 | 2.756 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFJ18B-060DB | J | 0.709 | 2.362 | 3.740 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFJ18B-085DB | J | 0.709 | 3.346 | 5.118 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFJ18B-120DB | J | 0.709 | 4.724 | 7.087 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFJ18B-175DB | J | 0.709 | 6.890 | 19.685 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFK18B-040DB | K | 0.709 | 1.575 | 2.756 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFK18B-058DB | K | 0.709 | 2.283 | 3.400 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFK18B-088DB | K | 0.709 | 3.465 | 7.087 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFK18B-168DB | K | 0.709 | 6.614 | 15.748 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFK18B-220DB | K | 0.709 | 8.661 | 39.370 | 2.603 | 1.603 | 1.000 | 1.000 | 6.000 | 1.039 |
| C2A-RSA16-LFL23B-075DB | L | 0.906 | 2.953 | 5.906 | 2.785 | 1.785 | 1.000 | 1.000 | 6.000 | 1.063 |
| C2A-RSA16-LFL23B-140DB | L | 0.906 | 5.512 | 15.748 | 2.785 | 1.785 | 1.000 | 1.000 | 6.000 | 1.063 |
| C2A-RSA20-LFL23B-075DB | L | 0.906 | 2.953 | 5.906 | 3.035 | 1.785 | 1.250 | 1.250 | 6.000 | 1.309 |
| C2A-RSA20-LFL23B-140DB | L | 0.906 | 5.512 | 15.748 | 3.035 | 1.785 | 1.250 | 1.250 | 6.000 | 1.309 |
R = Right hand, L = Left hand
