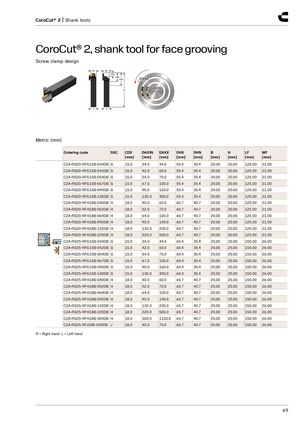

CoroCut® 2, shank tool for face grooving
Screw clamp design
HF WF CDX OHN OHX
LF
H B
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-RS20-RFG15B-034DB G | 15.0 | 34.0 | 44.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFG15B-042DB G | 15.0 | 42.0 | 60.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFG15B-054DB G | 15.0 | 54.0 | 75.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFG15B-067DB G | 15.0 | 67.0 | 100.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFG15B-090DB G | 15.0 | 90.0 | 160.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFG15B-130DB G | 15.0 | 130.0 | 300.0 | 55.4 | 35.4 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-040DB H | 18.0 | 40.0 | 60.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-052DB H | 18.0 | 52.0 | 72.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-064DB H | 18.0 | 64.0 | 100.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-092DB H | 18.0 | 92.0 | 140.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-132DB H | 18.0 | 132.0 | 230.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS20-RFH18B-220DB H | 18.0 | 220.0 | 500.0 | 60.7 | 40.7 | 20.00 | 20.00 | 125.00 | 21.00 |
| C2A-RS25-RFG15B-034DB G | 15.0 | 34.0 | 44.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFG15B-042DB G | 15.0 | 42.0 | 60.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFG15B-054DB G | 15.0 | 54.0 | 75.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFG15B-067DB G | 15.0 | 67.0 | 100.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFG15B-090DB G | 15.0 | 90.0 | 160.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFG15B-130DB G | 15.0 | 130.0 | 300.0 | 60.4 | 35.4 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-040DB H | 18.0 | 40.0 | 60.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-052DB H | 18.0 | 52.0 | 72.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-064DB H | 18.0 | 64.0 | 100.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-092DB H | 18.0 | 92.0 | 140.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-132DB H | 18.0 | 132.0 | 230.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-220DB H | 18.0 | 220.0 | 500.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFH18B-300DB H | 18.0 | 300.0 | 1100.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
| C2A-RS25-RFJ18B-040DB J | 18.0 | 40.0 | 70.0 | 65.7 | 40.7 | 25.00 | 25.00 | 150.00 | 26.00 |
R = Right hand, L = Left hand
