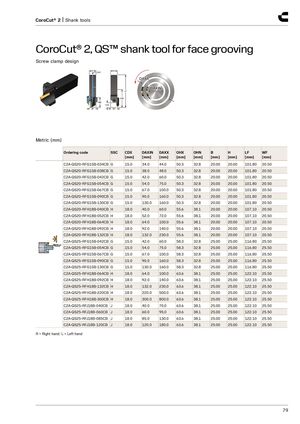

CoroCut® 2, QS™ shank tool for face grooving
Screw clamp design
H B CNT
LF
OHX HBL CDX HF WF
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-QS20-RFG15B-034CB G | 15.0 | 34.0 | 44.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-038CB G | 15.0 | 38.0 | 48.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-042CB G | 15.0 | 42.0 | 60.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-054CB G | 15.0 | 54.0 | 75.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-067CB G | 15.0 | 67.0 | 100.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-090CB G | 15.0 | 90.0 | 160.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFG15B-130CB G | 15.0 | 130.0 | 160.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.80 | 20.50 |
| C2A-QS20-RFH18B-040CB H | 18.0 | 40.0 | 60.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-RFH18B-052CB H | 18.0 | 52.0 | 72.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-RFH18B-064CB H | 18.0 | 64.0 | 100.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-RFH18B-092CB H | 18.0 | 92.0 | 140.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS20-RFH18B-132CB H | 18.0 | 132.0 | 230.0 | 55.6 | 38.1 | 20.00 | 20.00 | 107.10 | 20.50 |
| C2A-QS25-RFG15B-042CB G | 15.0 | 42.0 | 60.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-RFG15B-054CB G | 15.0 | 54.0 | 75.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-RFG15B-067CB G | 15.0 | 67.0 | 100.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-RFG15B-090CB G | 15.0 | 90.0 | 160.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-RFG15B-130CB G | 15.0 | 130.0 | 160.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.80 | 25.50 |
| C2A-QS25-RFH18B-064CB H | 18.0 | 64.0 | 100.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFH18B-092CB H | 18.0 | 92.0 | 140.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFH18B-132CB H | 18.0 | 132.0 | 230.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFH18B-220CB H | 18.0 | 220.0 | 500.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFH18B-300CB H | 18.0 | 300.0 | 800.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFJ18B-040CB J | 18.0 | 40.0 | 70.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFJ18B-060CB J | 18.0 | 60.0 | 95.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFJ18B-085CB J | 18.0 | 85.0 | 130.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFJ18B-120CB J | 18.0 | 120.0 | 180.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
R = Right hand, L = Left hand
