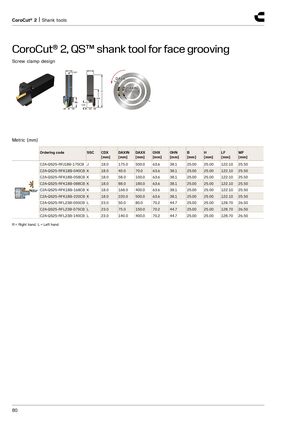

CoroCut® 2, QS™ shank tool for face grooving
Screw clamp design
H B CNT
LF
OHX HBL CDX HF WF
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-QS25-RFJ18B-175CB J | 18.0 | 175.0 | 500.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFK18B-040CB K | 18.0 | 40.0 | 70.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFK18B-058CB K | 18.0 | 58.0 | 100.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFK18B-088CB K | 18.0 | 88.0 | 180.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFK18B-168CB K | 18.0 | 168.0 | 400.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFK18B-220CB K | 18.0 | 220.0 | 500.0 | 63.6 | 38.1 | 25.00 | 25.00 | 122.10 | 25.50 |
| C2A-QS25-RFL23B-050CB L | 23.0 | 50.0 | 80.0 | 70.2 | 44.7 | 25.00 | 25.00 | 128.70 | 26.50 |
| C2A-QS25-RFL23B-075CB L | 23.0 | 75.0 | 150.0 | 70.2 | 44.7 | 25.00 | 25.00 | 128.70 | 26.50 |
| C2A-QS25-RFL23B-140CB L | 23.0 | 140.0 | 400.0 | 70.2 | 44.7 | 25.00 | 25.00 | 128.70 | 26.50 |
R = Right hand, L = Left hand
