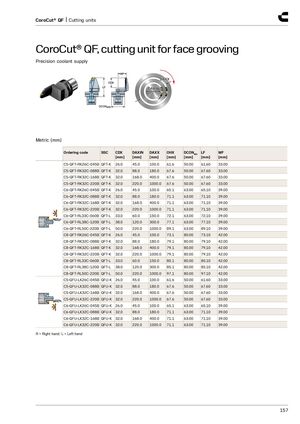

CoroCut® QF | Cutting units
CoroCut® QF, cutting unit for face grooving
Precision coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] |
| C5-QFT-RK26C-045B | QFT-K | 26.0 | 45.0 | 100.0 | 61.6 | 50.00 | 61.60 | 33.00 |
| C5-QFT-RK32C-088B | QFT-K | 32.0 | 88.0 | 180.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C5-QFT-RK32C-168B | QFT-K | 32.0 | 168.0 | 400.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C5-QFT-RK32C-220B | QFT-K | 32.0 | 220.0 | 1000.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C6-QFT-RK26C-045B | QFT-K | 26.0 | 45.0 | 100.0 | 65.1 | 63.00 | 65.10 | 39.00 |
| C6-QFT-RK32C-088B | QFT-K | 32.0 | 88.0 | 180.0 | 71.1 | 63.00 | 71.10 | 39.00 |
| C6-QFT-RK32C-168B | QFT-K | 32.0 | 168.0 | 400.0 | 71.1 | 63.00 | 71.10 | 39.00 |
| C6-QFT-RK32C-220B | QFT-K | 32.0 | 220.0 | 1000.0 | 71.1 | 63.00 | 71.10 | 39.00 |
| C6-QFT-RL33C-060B | QFT-L | 33.0 | 60.0 | 150.0 | 72.1 | 63.00 | 72.10 | 39.00 |
| C6-QFT-RL38C-120B | QFT-L | 38.0 | 120.0 | 300.0 | 77.1 | 63.00 | 77.10 | 39.00 |
| C6-QFT-RL50C-220B | QFT-L | 50.0 | 220.0 | 1000.0 | 89.1 | 63.00 | 89.10 | 39.00 |
| C8-QFT-RK26C-045B | QFT-K | 26.0 | 45.0 | 100.0 | 73.1 | 80.00 | 73.10 | 42.00 |
| C8-QFT-RK32C-088B | QFT-K | 32.0 | 88.0 | 180.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFT-RK32C-168B | QFT-K | 32.0 | 168.0 | 400.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFT-RK32C-220B | QFT-K | 32.0 | 220.0 | 1000.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFT-RL33C-060B | QFT-L | 33.0 | 60.0 | 150.0 | 80.1 | 80.00 | 80.10 | 42.00 |
| C8-QFT-RL38C-120B | QFT-L | 38.0 | 120.0 | 300.0 | 85.1 | 80.00 | 85.10 | 42.00 |
| C8-QFT-RL50C-220B | QFT-L | 50.0 | 220.0 | 1000.0 | 97.1 | 80.00 | 97.10 | 42.00 |
| C5-QFU-LK26C-045B | QFU-K | 26.0 | 45.0 | 100.0 | 61.6 | 50.00 | 61.60 | 33.00 |
| C5-QFU-LK32C-088B | QFU-K | 32.0 | 88.0 | 180.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C5-QFU-LK32C-168B | QFU-K | 32.0 | 168.0 | 400.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C5-QFU-LK32C-220B | QFU-K | 32.0 | 220.0 | 1000.0 | 67.6 | 50.00 | 67.60 | 33.00 |
| C6-QFU-LK26C-045B | QFU-K | 26.0 | 45.0 | 100.0 | 65.1 | 63.00 | 65.10 | 39.00 |
| C6-QFU-LK32C-088B | QFU-K | 32.0 | 88.0 | 180.0 | 71.1 | 63.00 | 71.10 | 39.00 |
| C6-QFU-LK32C-168B | QFU-K | 32.0 | 168.0 | 400.0 | 71.1 | 63.00 | 71.10 | 39.00 |
| C6-QFU-LK32C-220B | QFU-K | 32.0 | 220.0 | 1000.0 | 71.1 | 63.00 | 71.10 | 39.00 |
R = Right hand, L = Left hand
