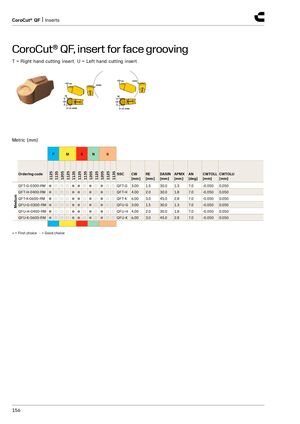

CoroCut® QF, insert for face grooving
T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N | S | ||||||||||||||||||||
| Ordering code | 1125 | 1135 | 1205 | 1125 | 1135 | 1125 | 1135 | 1205 | 2 | 115 | 1205 | 1125 | 1135 SSC | CW [mm] | RE [mm] | DAXIN [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | ||||
| QFT-G-0300-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFT-G | 3.00 | 1.5 | 30.0 | 1.3 | 7.0 | -0.050 | 0.050 | |||||
| QFT-H-0400-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFT-H | 4.00 | 2.0 | 30.0 | 1.8 | 7.0 | -0.050 | 0.050 | |||||
| dium QFT-K-0600-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFT-K | 6.00 | 3.0 | 45.0 | 2.8 | 7.0 | -0.050 | 0.050 | |||||
| Me QFU-G-0300-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFU-G | 3.00 | 1.5 | 30.0 | 1.3 | 7.0 | -0.050 | 0.050 | |||||
| QFU-H-0400-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFU-H | 4.00 | 2.0 | 30.0 | 1.8 | 7.0 | -0.050 | 0.050 | |||||
| QFU-K-0600-RM | ● | ○ | ○ | ○ | ● | ● | ○ | ● | ○ | ● | ○ | ○QFU-K | 6.00 | 3.0 | 45.0 | 2.8 | 7.0 | -0.050 | 0.050 |
- = First choice ○ = Good choice
