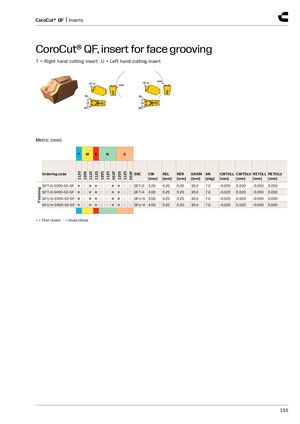

CoroCut® QF, insert for face grooving
T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M K | N | S | |||||||||||
| Ordering code | 1125 | 1205 1125 1125 | 1205 1125 H10F | 1205 1125 H10F | SSC | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOL [mm] | L RETOLU [mm] |
| g QFT-G-0300-02-GF | ●○ | ●● | ○○● | ●○○ | QFT-G | 3.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| shin QFT-H-0400-02-GF | ●○ | ●● | ○○● | ●○○ | QFT-H | 4.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| ini QFU-G-0300-02-GF | ●○ | ●● | ○○● | ●○○ | QFU-G | 3.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| F QFU-H-0400-02-GF | ●○ | ●● | ○○● | ●○○ | QFU-H | 4.00 | 0.20 | 0.20 | 30.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
- = First choice ○ = Good choice
