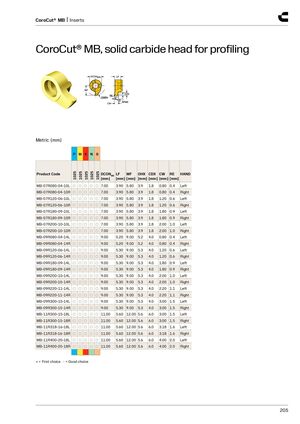

CoroCut® MB, solid carbide head for profiling
Metric (mm)
| P | M | K | N | S | |||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | RE [mm] | HAND |
| MB-07R080-04-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 0.80 | 0.4 | Left |
| MB-07R080-04-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 0.80 | 0.4 | Right |
| MB-07R120-06-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.20 | 0.6 | Left |
| MB-07R120-06-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.20 | 0.6 | Right |
| MB-07R180-09-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.80 | 0.9 | Left |
| MB-07R180-09-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.80 | 0.9 | Right |
| MB-07R200-10-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.00 | 1.0 | Left |
| MB-07R200-10-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.00 | 1.0 | Right |
| MB-09R080-04-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 4.0 | 0.80 | 0.4 | Left |
| MB-09R080-04-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 4.0 | 0.80 | 0.4 | Right |
| MB-09R120-06-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.20 | 0.6 | Left |
| MB-09R120-06-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.20 | 0.6 | Right |
| MB-09R180-09-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.80 | 0.9 | Left |
| MB-09R180-09-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.80 | 0.9 | Right |
| MB-09R200-10-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | 1.0 | Left |
| MB-09R200-10-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | 1.0 | Right |
| MB-09R220-11-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.20 | 1.1 | Left |
| MB-09R220-11-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.20 | 1.1 | Right |
| MB-09R300-15-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.00 | 1.5 | Left |
| MB-09R300-15-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.00 | 1.5 | Right |
| MB-11R300-15-18L | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 3.00 | 1.5 | Left |
| MB-11R300-15-18R | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 3.00 | 1.5 | Right |
| MB-11R318-16-18L | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 3.18 | 1.6 | Left |
| MB-11R318-16-18R | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 3.18 | 1.6 | Right |
| MB-11R400-20-18L | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 4.00 | 2.0 | Left |
| MB-11R400-20-18R | ○ | ○ | ○ | ○ | ○ | 11.00 | 5.60 | 12.00 | 5.6 | 6.0 | 4.00 | 2.0 | Right |
- = First choice = Good choice
