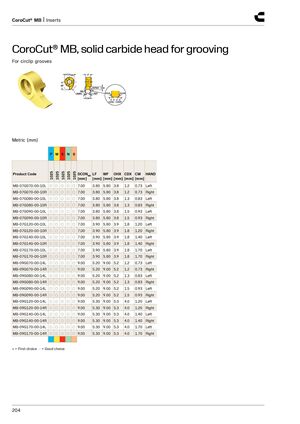

CoroCut® MB, solid carbide head for grooving
For circlip grooves
Metric (mm)
| P | M | K | N | S | ||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | HAND |
| MB-07G070-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.2 | 0.73 | Left |
| MB-07G070-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.2 | 0.73 | Right |
| MB-07G080-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.3 | 0.83 | Left |
| MB-07G080-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.3 | 0.83 | Right |
| MB-07G090-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.5 | 0.93 | Left |
| MB-07G090-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.80 | 5.80 | 3.8 | 1.5 | 0.93 | Right |
| MB-07G120-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.20 | Left |
| MB-07G120-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.20 | Right |
| MB-07G140-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.40 | Left |
| MB-07G140-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.40 | Right |
| MB-07G170-00-10L | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.70 | Left |
| MB-07G170-00-10R | ○ | ○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.70 | Right |
| MB-09G070-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.2 | 0.73 | Left |
| MB-09G070-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.2 | 0.73 | Right |
| MB-09G080-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.3 | 0.83 | Left |
| MB-09G080-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.3 | 0.83 | Right |
| MB-09G090-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.5 | 0.93 | Left |
| MB-09G090-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 1.5 | 0.93 | Right |
| MB-09G120-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.20 | Left |
| MB-09G120-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.20 | Right |
| MB-09G140-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.40 | Left |
| MB-09G140-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.40 | Right |
| MB-09G170-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.70 | Left |
| MB-09G170-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.70 | Right |
- = First choice = Good choice
