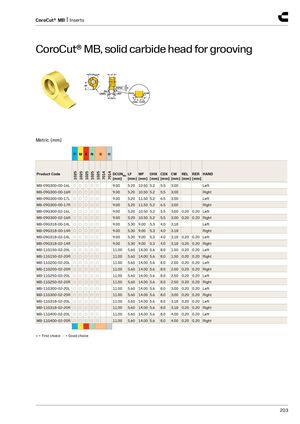

CoroCut® MB, solid carbide head for grooving
Metric (mm)
| P M | K | N | S | H | ||||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 | 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | HAND | ||
| MB-09G300-00-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 3.00 | Left | |||||
| MB-09G300-00-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 3.00 | Right | |||||
| MB-09G300-00-17L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 3.00 | Left | |||||
| MB-09G300-00-17R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 3.00 | Right | |||||
| MB-09G300-02-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 3.00 | 0.20 | 0.20 | Left | |||
| MB-09G300-02-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 3.00 | 0.20 | 0.20 | Right | |||
| MB-09G318-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.18 | Left | |||||
| MB-09G318-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.18 | Right | |||||
| MB-09G318-02-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.18 | 0.20 | 0.20 | Left | |||
| MB-09G318-02-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.18 | 0.20 | 0.20 | Right | |||
| MB-11G150-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 1.50 | 0.20 | 0.20 | Left | |||
| MB-11G150-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 1.50 | 0.20 | 0.20 | Right | |||
| MB-11G200-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 2.00 | 0.20 | 0.20 | Left | |||
| MB-11G200-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 2.00 | 0.20 | 0.20 | Right | |||
| MB-11G250-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 2.50 | 0.20 | 0.20 | Left | |||
| MB-11G250-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 2.50 | 0.20 | 0.20 | Right | |||
| MB-11G300-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 3.00 | 0.20 | 0.20 | Left | |||
| MB-11G300-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 3.00 | 0.20 | 0.20 | Right | |||
| MB-11G318-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 3.18 | 0.20 | 0.20 | Left | |||
| MB-11G318-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 3.18 | 0.20 | 0.20 | Right | |||
| MB-11G400-02-20L | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 4.00 | 0.20 | 0.20 | Left | |||
| MB-11G400-02-20R | ○○ | ○ | ○ | ○ | 11.00 | 5.60 | 14.00 | 5.6 | 8.0 | 4.00 | 0.20 | 0.20 | Right |
- = First choice = Good choice
