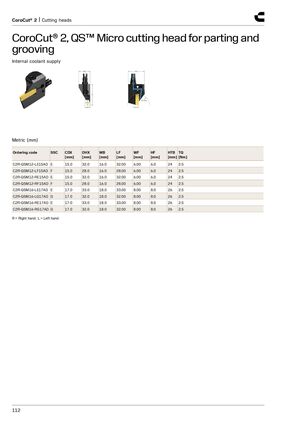

CoroCut® 2, QS™ Micro cutting head for parting and
grooving
Internal coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | WB [mm] | LF [mm] | WF [mm] | HF [mm] | HTB [mm] | TQ [Nm] |
| C2R-QSM12-LE15AD | E | 15.0 | 32.0 | 16.0 | 32.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-LF15AD | F | 15.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-RE15AD | E | 15.0 | 32.0 | 16.0 | 32.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-RF15AD | F | 15.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM16-LE17AD | E | 17.0 | 33.0 | 18.0 | 33.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-LG17AD | G | 17.0 | 32.0 | 18.0 | 32.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-RE17AD | E | 17.0 | 33.0 | 18.0 | 33.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-RG17AD | G | 17.0 | 32.0 | 18.0 | 32.00 | 8.00 | 8.0 | 26 | 2.5 |
R = Right hand, L = Left hand
