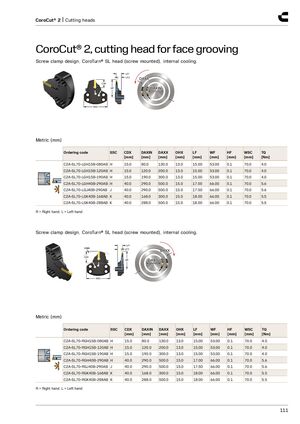

CoroCut® 2, cutting head for face grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling.
LF1 LF2 CDX WF
WSC
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | LF [mm] | WF [mm] | HF [mm] | WSC [mm] | TQ [Nm] |
| C2A-SL70-LGH15B-080AB H | 15.0 | 80.0 | 130.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-LGH15B-120AB H | 15.0 | 120.0 | 200.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-LGH15B-190AB H | 15.0 | 190.0 | 300.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-LGH40B-290AB H | 40.0 | 290.0 | 500.0 | 15.0 | 17.00 | 66.00 | 0.1 | 70.0 | 5.6 |
| C2A-SL70-LGJ40B-290AB J | 40.0 | 290.0 | 500.0 | 15.0 | 17.50 | 66.00 | 0.1 | 70.0 | 5.6 |
| C2A-SL70-LGK40B-168AB K | 40.0 | 168.0 | 300.0 | 15.0 | 18.00 | 66.00 | 0.1 | 70.0 | 5.5 |
| C2A-SL70-LGK40B-288AB K | 40.0 | 288.0 | 500.0 | 15.0 | 18.00 | 66.00 | 0.1 | 70.0 | 5.5 |
R = Right hand, L = Left hand Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling.
LF1 DMIN LF2
CDX WF
WSC
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | LF [mm] | WF [mm] | HF [mm] | WSC [mm] | TQ [Nm] |
| C2A-SL70-RGH15B-080AB H | 15.0 | 80.0 | 130.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-RGH15B-120AB H | 15.0 | 120.0 | 200.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-RGH15B-190AB H | 15.0 | 190.0 | 300.0 | 13.0 | 15.00 | 53.00 | 0.1 | 70.0 | 4.0 |
| C2A-SL70-RGH40B-290AB H | 40.0 | 290.0 | 500.0 | 15.0 | 17.00 | 66.00 | 0.1 | 70.0 | 5.6 |
| C2A-SL70-RGJ40B-290AB J | 40.0 | 290.0 | 500.0 | 15.0 | 17.50 | 66.00 | 0.1 | 70.0 | 5.6 |
| C2A-SL70-RGK40B-168AB K | 40.0 | 168.0 | 300.0 | 15.0 | 18.00 | 66.00 | 0.1 | 70.0 | 5.5 |
| C2A-SL70-RGK40B-288AB K | 40.0 | 288.0 | 500.0 | 15.0 | 18.00 | 66.00 | 0.1 | 70.0 | 5.5 |
