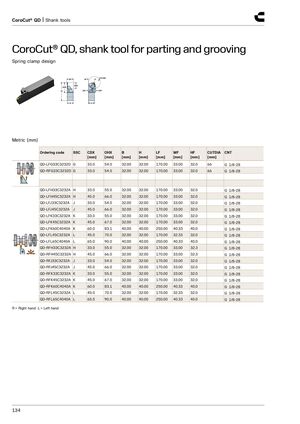

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] | CNT |
| QD-LFG33C3232D | G | 33.0 | 54.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 66 | G 1/8-28 |
| QD-RFG33C3232D | G | 33.0 | 54.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | 66 | G 1/8-28 |
| QD-LFH33C3232A | H | 33.0 | 55.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFH45C3232A | H | 45.0 | 66.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFJ33C3232A | J | 33.0 | 54.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFJ45C3232A | J | 45.0 | 66.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFK33C3232A | K | 33.0 | 55.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFK45C3232A | K | 45.0 | 67.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-LFK60C4040A | K | 60.0 | 83.1 | 40.00 | 40.00 | 250.00 | 40.33 | 40.0 | G 1/8-28 | |
| QD-LFL45C3232A | L | 45.0 | 70.0 | 32.00 | 32.00 | 170.00 | 32.33 | 32.0 | G 1/8-28 | |
| QD-LFL65C4040A | L | 65.0 | 90.0 | 40.00 | 40.00 | 250.00 | 40.33 | 40.0 | G 1/8-28 | |
| QD-RFH33C3232A | H | 33.0 | 55.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.3 | G 1/8-28 | |
| QD-RFH45C3232A | H | 45.0 | 66.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.3 | G 1/8-28 | |
| QD-RFJ33C3232A | J | 33.0 | 54.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-RFJ45C3232A | J | 45.0 | 66.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-RFK33C3232A | K | 33.0 | 55.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-RFK45C3232A | K | 45.0 | 67.0 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 | G 1/8-28 | |
| QD-RFK60C4040A | K | 60.0 | 83.1 | 40.00 | 40.00 | 250.00 | 40.33 | 40.0 | G 1/8-28 | |
| QD-RFL45C3232A | L | 45.0 | 70.0 | 32.00 | 32.00 | 170.00 | 32.33 | 32.0 | G 1/8-28 | |
| QD-RFL65C4040A | L | 65.0 | 90.0 | 40.00 | 40.00 | 250.00 | 40.33 | 40.0 | G 1/8-28 |
R = Right hand, L = Left hand
