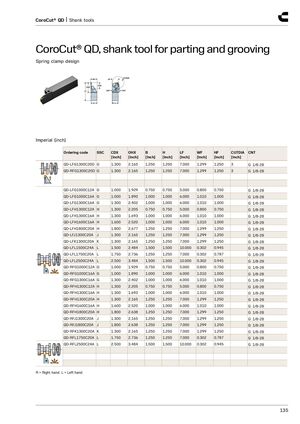

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | CNT |
| QD-LFG1300C20D | G | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | 3 | G 1/8-28 |
| QD-RFG1300C20D | G | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | 3 | G 1/8-28 |
| QD-LFG1000C12A | G | 1.000 | 1.929 | 0.750 | 0.750 | 5.000 | 0.800 | 0.750 | G 1/8-28 | |
| QD-LFG1000C16A | G | 1.000 | 1.890 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-LFG1300C16A | G | 1.300 | 2.402 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-LFH1300C12A | H | 1.300 | 2.205 | 0.750 | 0.750 | 5.000 | 0.800 | 0.750 | G 1/8-28 | |
| QD-LFH1300C16A | H | 1.300 | 1.693 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-LFH1600C16A | H | 1.600 | 2.520 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-LFH1800C20A | H | 1.800 | 2.677 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-LFJ1300C20A | J | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-LFK1300C20A | K | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-LFL1500C24A | L | 1.500 | 2.484 | 1.500 | 1.500 | 10.000 | 0.302 | 0.945 | G 1/8-28 | |
| QD-LFL1750C20A | L | 1.750 | 2.736 | 1.250 | 1.250 | 7.000 | 0.302 | 0.787 | G 1/8-28 | |
| QD-LFL2500C24A | L | 2.500 | 3.484 | 1.500 | 1.500 | 10.000 | 0.302 | 0.945 | G 1/8-28 | |
| QD-RFG1000C12A | G | 1.000 | 1.929 | 0.750 | 0.750 | 5.000 | 0.800 | 0.750 | G 1/8-28 | |
| QD-RFG1000C16A | G | 1.000 | 1.890 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-RFG1300C16A | G | 1.300 | 2.402 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-RFH1300C12A | H | 1.300 | 2.205 | 0.750 | 0.750 | 5.000 | 0.800 | 0.750 | G 1/8-28 | |
| QD-RFH1300C16A | H | 1.300 | 1.693 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-RFH1300C20A | H | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-RFH1600C16A | H | 1.600 | 2.520 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | G 1/8-28 | |
| QD-RFH1800C20A | H | 1.800 | 2.638 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-RFJ1300C20A | J | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-RFJ1800C20A | J | 1.800 | 2.638 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-RFK1300C20A | K | 1.300 | 2.165 | 1.250 | 1.250 | 7.000 | 1.299 | 1.250 | G 1/8-28 | |
| QD-RFL1750C20A | L | 1.750 | 2.736 | 1.250 | 1.250 | 7.000 | 0.302 | 0.787 | G 1/8-28 | |
| QD-RFL2500C24A | L | 2.500 | 3.484 | 1.500 | 1.500 | 10.000 | 0.302 | 0.945 | G 1/8-28 |
R = Right hand, L = Left hand
