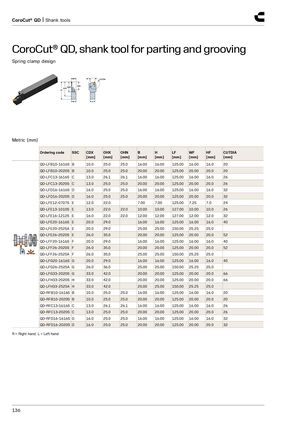

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QD-LFB10-1616S | B | 10.0 | 25.0 | 25.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 20 |
| QD-LFB10-2020S | B | 10.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 20 |
| QD-LFC13-1616S | C | 13.0 | 26.1 | 26.1 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 26 |
| QD-LFC13-2020S | C | 13.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 26 |
| QD-LFD16-1616S | D | 16.0 | 25.0 | 25.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 32 |
| QD-LFD16-2020S | D | 16.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 32 |
| QD-LFE12-0707S | E | 12.0 | 22.0 | 7.00 | 7.00 | 125.00 | 7.25 | 7.0 | 24 | |
| QD-LFE13-1010S | E | 13.0 | 22.0 | 22.0 | 10.00 | 10.00 | 127.00 | 10.00 | 10.0 | 26 |
| QD-LFE16-1212S | E | 16.0 | 22.0 | 22.0 | 12.00 | 12.00 | 127.00 | 12.00 | 12.0 | 32 |
| QD-LFE20-1616S | E | 20.0 | 29.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 40 | |
| QD-LFE20-2525A | E | 20.0 | 29.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-LFE26-2020S | E | 26.0 | 35.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 52 | |
| QD-LFF20-1616S | F | 20.0 | 29.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 40 | |
| QD-LFF26-2020S | F | 26.0 | 35.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 52 | |
| QD-LFF26-2525A | F | 26.0 | 35.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-LFG20-1616S | G | 20.0 | 29.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 40 | |
| QD-LFG26-2525A | G | 26.0 | 36.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-LFG33-2020S | G | 33.0 | 42.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 66 | |
| QD-LFH33-2020S | H | 33.0 | 42.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 66 | |
| QD-LFH33-2525A | H | 33.0 | 42.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-RFB10-1616S | B | 10.0 | 25.0 | 25.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 20 |
| QD-RFB10-2020S | B | 10.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 20 |
| QD-RFC13-1616S | C | 13.0 | 26.1 | 26.1 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 26 |
| QD-RFC13-2020S | C | 13.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 26 |
| QD-RFD16-1616S | D | 16.0 | 25.0 | 25.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 32 |
| QD-RFD16-2020S | D | 16.0 | 25.0 | 25.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 32 |
R = Right hand, L = Left hand
