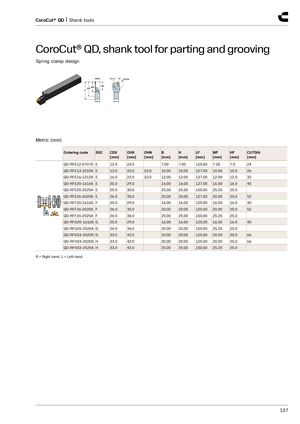

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QD-RFE12-0707S | E | 12.0 | 22.0 | 7.00 | 7.00 | 125.00 | 7.25 | 7.0 | 24 | |
| QD-RFE13-1010S | E | 13.0 | 22.0 | 22.0 | 10.00 | 10.00 | 127.00 | 10.00 | 10.0 | 26 |
| QD-RFE16-1212S | E | 16.0 | 22.0 | 22.0 | 12.00 | 12.00 | 127.00 | 12.00 | 12.0 | 32 |
| QD-RFE20-1616S | E | 20.0 | 29.0 | 16.00 | 16.00 | 127.00 | 16.00 | 16.0 | 40 | |
| QD-RFE20-2525A | E | 20.0 | 30.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-RFE26-2020S | E | 26.0 | 35.0 | 20.00 | 20.00 | 127.00 | 20.00 | 20.0 | 52 | |
| QD-RFF20-1616S | F | 20.0 | 29.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 40 | |
| QD-RFF26-2020S | F | 26.0 | 35.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 52 | |
| QD-RFF26-2525A | F | 26.0 | 36.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-RFG20-1616S | G | 20.0 | 29.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 40 | |
| QD-RFG26-2525A | G | 26.0 | 36.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 | ||
| QD-RFG33-2020S | G | 33.0 | 42.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 66 | |
| QD-RFH33-2020S | H | 33.0 | 42.0 | 20.00 | 20.00 | 125.00 | 20.00 | 20.0 | 66 | |
| QD-RFH33-2525A | H | 33.0 | 42.0 | 25.00 | 25.00 | 150.00 | 25.25 | 25.0 |
R = Right hand, L = Left hand
