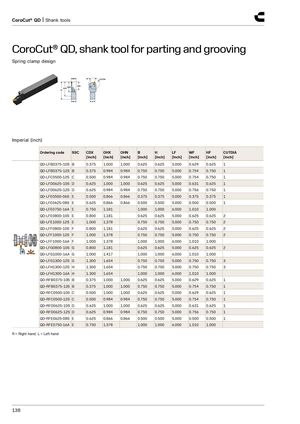

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] |
| QD-LFB0375-10S | B | 0.375 | 1.000 | 1.000 | 0.625 | 0.625 | 5.000 | 0.629 | 0.625 | 1 |
| QD-LFB0375-12S | B | 0.375 | 0.984 | 0.984 | 0.750 | 0.750 | 5.000 | 0.754 | 0.750 | 1 |
| QD-LFC0500-12S | C | 0.500 | 0.984 | 0.984 | 0.750 | 0.750 | 5.000 | 0.754 | 0.750 | 1 |
| QD-LFD0625-10S | D | 0.625 | 1.000 | 1.000 | 0.625 | 0.625 | 5.000 | 0.631 | 0.625 | 1 |
| QD-LFD0625-12S | D | 0.625 | 0.984 | 0.984 | 0.750 | 0.750 | 5.000 | 0.756 | 0.750 | 1 |
| QD-LFE0500-06S | E | 0.500 | 0.866 | 0.866 | 0.375 | 0.375 | 5.000 | 0.375 | 0.375 | 1 |
| QD-LFE0625-08S | E | 0.625 | 0.866 | 0.866 | 0.500 | 0.500 | 5.000 | 0.500 | 0.500 | 1 |
| QD-LFE0750-16A | E | 0.750 | 1.181 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-LFE0800-10S | E | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-LFE1000-12S | E | 1.000 | 1.378 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 2 | |
| QD-LFF0800-10S | F | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-LFF1000-12S | F | 1.000 | 1.378 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 2 | |
| QD-LFF1000-16A | F | 1.000 | 1.378 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-LFG0800-10S | G | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-LFG1000-16A | G | 1.000 | 1.417 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-LFG1300-12S | G | 1.300 | 1.654 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 3 | |
| QD-LFH1300-12S | H | 1.300 | 1.654 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 3 | |
| QD-LFH1300-16A | H | 1.300 | 1.654 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-RFB0375-10S | B | 0.375 | 1.000 | 1.000 | 0.625 | 0.625 | 5.000 | 0.629 | 0.625 | 1 |
| QD-RFB0375-12S | B | 0.375 | 1.000 | 1.000 | 0.750 | 0.750 | 5.000 | 0.754 | 0.750 | 1 |
| QD-RFC0500-10S | C | 0.500 | 1.000 | 1.000 | 0.625 | 0.625 | 5.000 | 0.629 | 0.625 | 1 |
| QD-RFC0500-12S | C | 0.500 | 0.984 | 0.984 | 0.750 | 0.750 | 5.000 | 0.754 | 0.750 | 1 |
| QD-RFD0625-10S | D | 0.625 | 1.000 | 1.000 | 0.625 | 0.625 | 5.000 | 0.631 | 0.625 | 1 |
| QD-RFD0625-12S | D | 0.625 | 0.984 | 0.984 | 0.750 | 0.750 | 5.000 | 0.756 | 0.750 | 1 |
| QD-RFE0625-08S | E | 0.625 | 0.866 | 0.866 | 0.500 | 0.500 | 5.000 | 0.500 | 0.500 | 1 |
| QD-RFE0750-16A | E | 0.750 | 1.378 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 |
R = Right hand, L = Left hand
