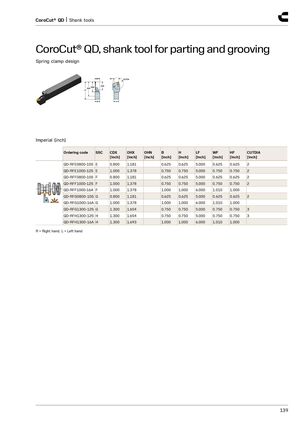

CoroCut® QD, shank tool for parting and grooving
Spring clamp design
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] |
| QD-RFE0800-10S E | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-RFE1000-12S E | 1.000 | 1.378 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 2 | |
| QD-RFF0800-10S F | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-RFF1000-12S F | 1.000 | 1.378 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 2 | |
| QD-RFF1000-16A F | 1.000 | 1.378 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-RFG0800-10S G | 0.800 | 1.181 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 2 | |
| QD-RFG1000-16A G | 1.000 | 1.378 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 | ||
| QD-RFG1300-12S G | 1.300 | 1.654 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 3 | |
| QD-RFH1300-12S H | 1.300 | 1.654 | 0.750 | 0.750 | 5.000 | 0.750 | 0.750 | 3 | |
| QD-RFH1300-16A H | 1.300 | 1.693 | 1.000 | 1.000 | 6.000 | 1.010 | 1.000 |
R = Right hand, L = Left hand
