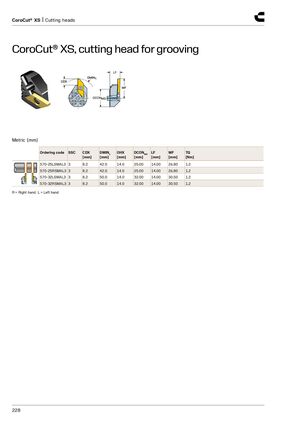

CoroCut® XS, cutting head for grooving
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| 570-25LSMAL3 | 3 | 8.2 | 42.0 | 14.0 | 25.00 | 14.00 | 26.80 | 1.2 |
| 570-25RSMAL3 | 3 | 8.2 | 42.0 | 14.0 | 25.00 | 14.00 | 26.80 | 1.2 |
| 570-32LSMAL3 | 3 | 8.2 | 50.0 | 14.0 | 32.00 | 14.00 | 30.50 | 1.2 |
| 570-32RSMAL3 | 3 | 8.2 | 50.0 | 14.0 | 32.00 | 14.00 | 30.50 | 1.2 |
R = Right hand, L = Left hand
