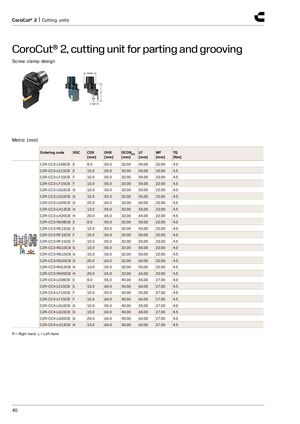

CoroCut® 2, cutting unit for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CC3-LE08CB | E | 8.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-LE15CB | E | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-LF10CB | F | 10.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-LF15CB | F | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-LG10CB | G | 10.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-LG15CB | G | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-LG20CB | G | 20.0 | 60.0 | 32.00 | 60.00 | 22.00 | 4.5 |
| C2R-CC3-LH13CB | H | 13.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-LH20CB | H | 20.0 | 65.0 | 32.00 | 65.00 | 22.00 | 4.5 |
| C2R-CC3-RE08CB | E | 8.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-RE15CB | E | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-RF10CB | F | 10.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-RF15CB | F | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-RG10CB | G | 10.0 | 50.0 | 32.00 | 50.00 | 22.00 | 4.0 |
| C2R-CC3-RG15CB | G | 15.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-RG20CB | G | 20.0 | 60.0 | 32.00 | 60.00 | 22.00 | 4.5 |
| C2R-CC3-RH13CB | H | 13.0 | 55.0 | 32.00 | 55.00 | 22.00 | 4.5 |
| C2R-CC3-RH20CB | H | 20.0 | 65.0 | 32.00 | 65.00 | 22.00 | 4.5 |
| C2R-CC4-LE08CB | E | 8.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-LE15CB | E | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-LF10CB | F | 10.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-LF15CB | F | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-LG10CB | G | 10.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-LG15CB | G | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-LG20CB | G | 20.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2R-CC4-LH13CB | H | 13.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
R = Right hand, L = Left hand
