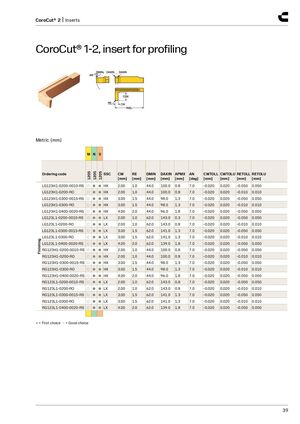

CoroCut® 1-2, insert for profiling
Metric (mm)
| M N S | ||||||||||||
| Ordering code | 1205 1205 1205 | SSC | CW [mm] | RE [mm] | DMIN [mm] | DAXIN [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] |
| LG123H1-0200-0010-RS | ○●● | HX | 2.00 | 1.0 | 44.0 | 100.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| LG123H1-0200-RO | ○●● | HX | 2.00 | 1.0 | 44.0 | 100.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| LG123H1-0300-0015-RS | ○●● | HX | 3.00 | 1.5 | 44.0 | 98.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| LG123H1-0300-RO | ○●● | HX | 3.00 | 1.5 | 44.0 | 98.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| LG123H1-0400-0020-RS | ○●● | HX | 4.00 | 2.0 | 44.0 | 96.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| LG123L1-0200-0010-RS | ○●● | LX | 2.00 | 1.0 | 62.0 | 143.0 | 0.3 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| LG123L1-0200-RO | ○●● | LX | 2.00 | 1.0 | 62.0 | 143.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| LG123L1-0300-0015-RS | ○●● | LX | 3.00 | 1.5 | 62.0 | 141.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| g LG123L1-0300-RO | ○●● | LX | 3.00 | 1.5 | 62.0 | 141.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| shin LG123L1-0400-0020-RS | ○●● | LX | 4.00 | 2.0 | 62.0 | 139.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| Fini RG123H1-0200-0010-RS | ○●● | HX | 2.00 | 1.0 | 44.0 | 100.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| RG123H1-0200-RO | ○●● | HX | 2.00 | 1.0 | 44.0 | 100.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| RG123H1-0300-0015-RS | ○●● | HX | 3.00 | 1.5 | 44.0 | 98.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| RG123H1-0300-RO | ○●● | HX | 3.00 | 1.5 | 44.0 | 98.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| RG123H1-0400-0020-RS | ○●● | HX | 4.00 | 2.0 | 44.0 | 96.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| RG123L1-0200-0010-RS | ○●● | LX | 2.00 | 1.0 | 62.0 | 143.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| RG123L1-0200-RO | ○●● | LX | 2.00 | 1.0 | 62.0 | 143.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| RG123L1-0300-0015-RS | ○●● | LX | 3.00 | 1.5 | 62.0 | 141.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| RG123L1-0300-RO | ○●● | LX | 3.00 | 1.5 | 62.0 | 141.0 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| RG123L1-0400-0020-RS | ○●● | LX | 4.00 | 2.0 | 62.0 | 139.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
- = First choice = Good choice
