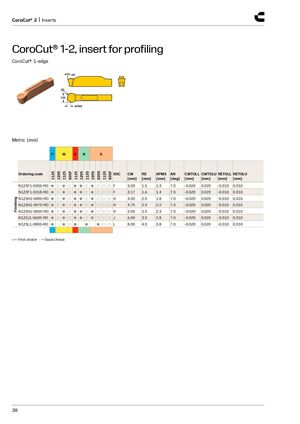

CoroCut® 1-2, insert for profiling
CoroCut® 1-edge
Metric (mm)
| P | M | K | N | S | ||||||||||||||
| Ordering code | 1125 | 1205 1125 S05F | 1125 | 1205 | 1125 | 1205 | S205 | 1125 | S05F SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] | |
| N123F1-0300-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○F | 3.00 | 1.5 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| N123F1-0318-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○F | 3.17 | 1.6 | 1.4 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| ing N123H1-0400-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○H | 4.00 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| nish N123H1-0475-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○H | 4.75 | 2.4 | 2.2 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| Fi N123H1-0500-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○H | 5.00 | 2.5 | 2.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| N123J1-0600-RO | ● | ○●○ | ● | ● | ○ | ● | ○○ | ○J | 6.00 | 3.0 | 2.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | ||
| N123L1-0800-RO | ● | ●○ | ● | ● | ●○ | ○L | 8.00 | 4.0 | 3.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
- = First choice ○ = Good choice
