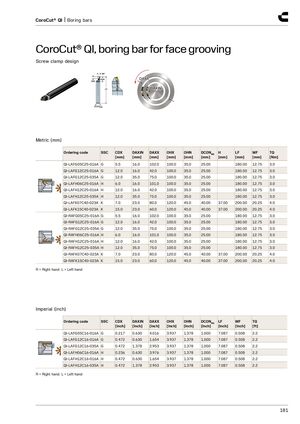

CoroCut® QI, boring bar for face grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | H [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| QI-LAFG05C25-016A | G | 5.5 | 16.0 | 102.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFG12C25-016A | G | 12.0 | 16.0 | 42.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFG12C25-035A | G | 12.0 | 35.0 | 75.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFH06C25-016A | H | 6.0 | 16.0 | 101.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFH12C25-016A | H | 12.0 | 16.0 | 42.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFH12C25-035A | H | 12.0 | 35.0 | 75.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-LAFK07C40-023A | K | 7.0 | 23.0 | 80.0 | 120.0 | 45.0 | 40.00 | 37.00 | 200.00 | 20.25 | 4.0 |
| QI-LAFK15C40-023A | K | 15.0 | 23.0 | 60.0 | 120.0 | 45.0 | 40.00 | 37.00 | 200.00 | 20.25 | 4.0 |
| QI-RAFG05C25-016A | G | 5.5 | 16.0 | 102.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFG12C25-016A | G | 12.0 | 16.0 | 42.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFG12C25-035A | G | 12.0 | 35.0 | 75.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFH06C25-016A | H | 6.0 | 16.0 | 101.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFH12C25-016A | H | 12.0 | 16.0 | 42.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFH12C25-035A | H | 12.0 | 35.0 | 75.0 | 100.0 | 35.0 | 25.00 | 180.00 | 12.75 | 3.0 | |
| QI-RAFK07C40-023A | K | 7.0 | 23.0 | 80.0 | 120.0 | 45.0 | 40.00 | 37.00 | 200.00 | 20.25 | 4.0 |
| QI-RAFK15C40-023A | K | 15.0 | 23.0 | 60.0 | 120.0 | 45.0 | 40.00 | 37.00 | 200.00 | 20.25 | 4.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | DCONMS [inch] | LF [inch] | WF [inch] | TQ [ft] |
| QI-LAFG05C16-016A | G | 0.217 | 0.630 | 4.016 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-LAFG12C16-016A | G | 0.472 | 0.630 | 1.654 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-LAFG12C16-035A | G | 0.472 | 1.378 | 2.953 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-LAFH06C16-016A | H | 0.236 | 0.630 | 3.976 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-LAFH12C16-016A | H | 0.472 | 0.630 | 1.654 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-LAFH12C16-035A | H | 0.472 | 1.378 | 2.953 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
R = Right hand, L = Left hand
