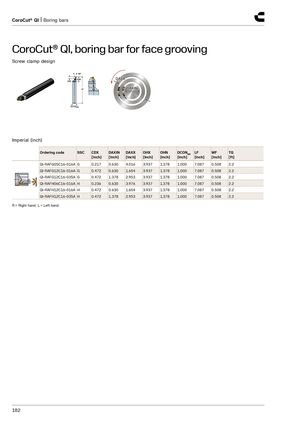

CoroCut® QI, boring bar for face grooving
Screw clamp design
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | DCONMS [inch] | LF [inch] | WF [inch] | TQ [ft] |
| QI-RAFG05C16-016A | G | 0.217 | 0.630 | 4.016 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-RAFG12C16-016A | G | 0.472 | 0.630 | 1.654 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-RAFG12C16-035A | G | 0.472 | 1.378 | 2.953 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-RAFH06C16-016A | H | 0.236 | 0.630 | 3.976 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-RAFH12C16-016A | H | 0.472 | 0.630 | 1.654 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
| QI-RAFH12C16-035A | H | 0.472 | 1.378 | 2.953 | 3.937 | 1.378 | 1.000 | 7.087 | 0.508 | 2.2 |
R = Right hand, L = Left hand
