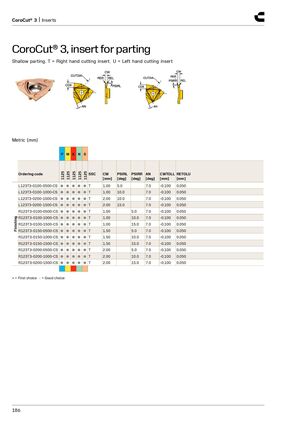

CoroCut® 3, insert for parting
Shallow parting. T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N | S | |||||||
| Ordering code | 1125 | 1125 | 1125 | 1125 | 1125 SSC | CW [mm] | PSIRL [deg] | PSIRR [deg] | AN [deg] | CWTOLL [mm] | RETOLU [mm] |
| L123T3-0100-0500-CS | ● | ● | ● | ● | ●T | 1.00 | 5.0 | 7.0 | -0.100 | 0.050 | |
| L123T3-0100-1000-CS | ● | ● | ● | ● | ●T | 1.00 | 10.0 | 7.0 | -0.100 | 0.050 | |
| L123T3-0200-1000-CS | ● | ● | ● | ● | ●T | 2.00 | 10.0 | 7.0 | -0.100 | 0.050 | |
| L123T3-0200-1500-CS | ● | ● | ● | ● | ●T | 2.00 | 15.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0100-0500-CS | ● | ● | ● | ● | ●T | 1.00 | 5.0 | 7.0 | -0.100 | 0.050 | |
| ing R123T3-0100-1000-CS | ● | ● | ● | ● | ●T | 1.00 | 10.0 | 7.0 | -0.100 | 0.050 | |
| nish R123T3-0100-1500-CS | ● | ● | ● | ● | ●T | 1.00 | 15.0 | 7.0 | -0.100 | 0.050 | |
| Fi R123T3-0150-0500-CS | ● | ● | ● | ● | ●T | 1.50 | 5.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0150-1000-CS | ● | ● | ● | ● | ●T | 1.50 | 10.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0150-1500-CS | ● | ● | ● | ● | ●T | 1.50 | 15.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0200-0500-CS | ● | ● | ● | ● | ●T | 2.00 | 5.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0200-1000-CS | ● | ● | ● | ● | ●T | 2.00 | 10.0 | 7.0 | -0.100 | 0.050 | |
| R123T3-0200-1500-CS | ● | ● | ● | ● | ●T | 2.00 | 15.0 | 7.0 | -0.100 | 0.050 |
- = First choice ○ = Good choice
