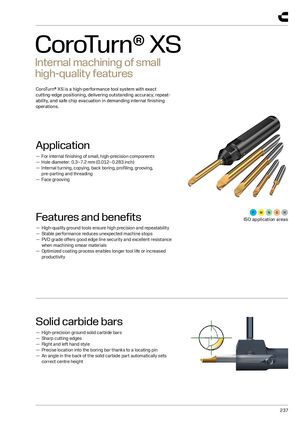

CoroTurn® XS CoroTurn® XS Internal machining of small high-quality features CoroTurn® XS is a high-performance tool system with exact cutting-edge positioning, delivering outstanding accuracy, repeat- ability, and safe chip evacuation in demanding internal finishing operations. Application — For internal finishing of small, high-precision components — Hole diameter: 0.3–7.2 mm (0.012–0.283 inch) — Internal turning, copying, back boring, profiling, grooving, pre-parting and threading — Face grooving Features and benefits ISO application areas — High-quality ground tools ensure high precision and repeatability — Stable performance reduces unexpected machine stops — PVD grade offers good edge line security and excellent resistance when machining smear materials — Optimized coating process enables longer tool life or increased productivity Solid carbide bars — High-precision ground solid carbide bars — Sharp cutting edges — Right and left hand style — Precise location into the boring bar thanks to a locating pin — An angle in the back of the solid carbide part automatically sets correct centre height 237
