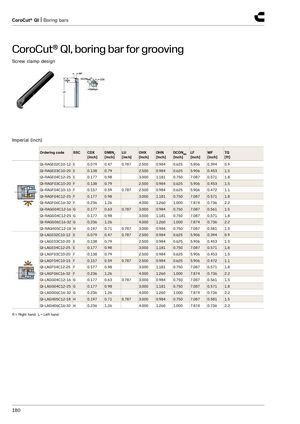

CoroCut® QI, boring bar for grooving
Screw clamp design
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DMIN1 [inch] | LU [inch] | OHX [inch] | OHN [inch] | DCONMS [inch] | LF [inch] | WF [inch] | TQ [ft] |
| QI-RAGE02C10-12 | E | 0.079 | 0.47 | 0.787 | 2.500 | 0.984 | 0.625 | 5.906 | 0.394 | 0.9 |
| QI-RAGE03C10-20 | E | 0.138 | 0.79 | 2.500 | 0.984 | 0.625 | 5.906 | 0.453 | 1.5 | |
| QI-RAGE04C12-25 | E | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-RAGF03C10-20 | F | 0.138 | 0.79 | 2.500 | 0.984 | 0.625 | 5.906 | 0.453 | 1.5 | |
| QI-RAGF04C10-15 | F | 0.157 | 0.59 | 0.787 | 2.500 | 0.984 | 0.625 | 5.906 | 0.472 | 1.1 |
| QI-RAGF04C12-25 | F | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-RAGF06C16-32 | F | 0.236 | 1.26 | 4.000 | 1.260 | 1.000 | 7.874 | 0.736 | 2.2 | |
| QI-RAGG04C12-16 | G | 0.177 | 0.63 | 0.787 | 3.000 | 0.984 | 0.750 | 7.087 | 0.561 | 1.5 |
| QI-RAGG04C12-25 | G | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-RAGG06C16-32 | G | 0.236 | 1.26 | 4.000 | 1.260 | 1.000 | 7.874 | 0.736 | 2.2 | |
| QI-RAGH05C12-18 | H | 0.197 | 0.71 | 0.787 | 3.000 | 0.984 | 0.750 | 7.087 | 0.581 | 1.5 |
| QI-LAGE02C10-12 | E | 0.079 | 0.47 | 0.787 | 2.500 | 0.984 | 0.625 | 5.906 | 0.394 | 0.9 |
| QI-LAGE03C10-20 | E | 0.138 | 0.79 | 2.500 | 0.984 | 0.625 | 5.906 | 0.453 | 1.5 | |
| QI-LAGE04C12-25 | E | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-LAGF03C10-20 | F | 0.138 | 0.79 | 2.500 | 0.984 | 0.625 | 5.906 | 0.453 | 1.5 | |
| QI-LAGF04C10-15 | F | 0.157 | 0.59 | 0.787 | 2.500 | 0.984 | 0.625 | 5.906 | 0.472 | 1.1 |
| QI-LAGF04C12-25 | F | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-LAGF06C16-32 | F | 0.236 | 1.26 | 4.000 | 1.260 | 1.000 | 7.874 | 0.736 | 2.2 | |
| QI-LAGG04C12-16 | G | 0.177 | 0.63 | 0.787 | 3.000 | 0.984 | 0.750 | 7.087 | 0.561 | 1.5 |
| QI-LAGG04C12-25 | G | 0.177 | 0.98 | 3.000 | 1.181 | 0.750 | 7.087 | 0.571 | 1.8 | |
| QI-LAGG06C16-32 | G | 0.236 | 1.26 | 4.000 | 1.260 | 1.000 | 7.874 | 0.736 | 2.2 | |
| QI-LAGH05C12-18 | H | 0.197 | 0.71 | 0.787 | 3.000 | 0.984 | 0.750 | 7.087 | 0.581 | 1.5 |
| QI-LAGH06C16-32 | H | 0.236 | 1.26 | 4.000 | 1.260 | 1.000 | 7.874 | 0.736 | 2.2 |
R = Right hand, L = Left hand
