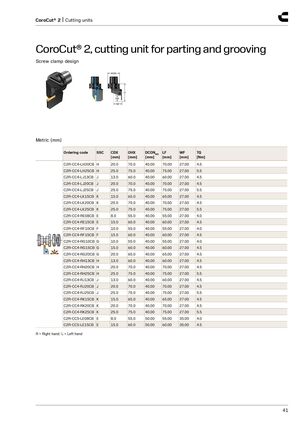

CoroCut® 2, cutting unit for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CC4-LH20CB | H | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-LH25CB | H | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC4-LJ13CB | J | 13.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-LJ20CB | J | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-LJ25CB | J | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC4-LK15CB | K | 15.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2R-CC4-LK20CB | K | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-LK25CB | K | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC4-RE08CB | E | 8.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-RE15CB | E | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-RF10CB | F | 10.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-RF15CB | F | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-RG10CB | G | 10.0 | 55.0 | 40.00 | 55.00 | 27.00 | 4.0 |
| C2R-CC4-RG15CB | G | 15.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-RG20CB | G | 20.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2R-CC4-RH13CB | H | 13.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-RH20CB | H | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-RH25CB | H | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC4-RJ13CB | J | 13.0 | 60.0 | 40.00 | 60.00 | 27.00 | 4.5 |
| C2R-CC4-RJ20CB | J | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-RJ25CB | J | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC4-RK15CB | K | 15.0 | 65.0 | 40.00 | 65.00 | 27.00 | 4.5 |
| C2R-CC4-RK20CB | K | 20.0 | 70.0 | 40.00 | 70.00 | 27.00 | 4.5 |
| C2R-CC4-RK25CB | K | 25.0 | 75.0 | 40.00 | 75.00 | 27.00 | 5.5 |
| C2R-CC5-LE08CB | E | 8.0 | 55.0 | 50.00 | 55.00 | 35.00 | 4.0 |
| C2R-CC5-LE15CB | E | 15.0 | 60.0 | 50.00 | 60.00 | 35.00 | 4.5 |
R = Right hand, L = Left hand
