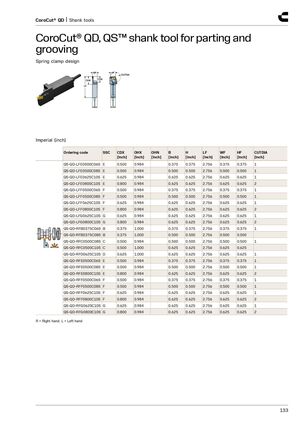

grooving
Spring clamp design
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] |
| QS-QD-LFE0500C06S E | 0.500 | 0.984 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-LFE0500C08S E | 0.500 | 0.984 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 1 | |
| QS-QD-LFE0625C10S E | 0.625 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-LFE0800C10S E | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 | |
| QS-QD-LFF0500C06S F | 0.500 | 0.984 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-LFF0500C08S F | 0.500 | 0.984 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 1 | |
| QS-QD-LFF0625C10S F | 0.625 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-LFF0800C10S F | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 | |
| QS-QD-LFG0625C10S G | 0.625 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-LFG0800C10S G | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 | |
| QS-QD-RFB0375C06S B | 0.375 | 1.000 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-RFB0375C08S B | 0.375 | 1.000 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | ||
| QS-QD-RFC0500C08S C | 0.500 | 0.984 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 1 | |
| QS-QD-RFC0500C10S C | 0.500 | 1.000 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | ||
| QS-QD-RFD0625C10S D | 0.625 | 1.000 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-RFE0500C06S E | 0.500 | 0.984 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-RFE0500C08S E | 0.500 | 0.984 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 1 | |
| QS-QD-RFE0800C10S E | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 | |
| QS-QD-RFF0500C06S F | 0.500 | 0.984 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-RFF0500C08S F | 0.500 | 0.984 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | 1 | |
| QS-QD-RFF0625C10S F | 0.625 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-RFF0800C10S F | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 | |
| QS-QD-RFG0625C10S G | 0.625 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 | |
| QS-QD-RFG0800C10S G | 0.800 | 0.984 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 2 |
R = Right hand, L = Left hand
