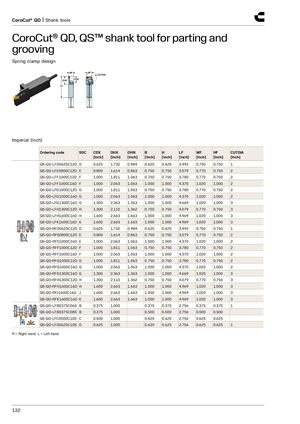

grooving
Spring clamp design
Imperial (inch)
| Ordering code SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] |
| QS-QD-LFD0625C12D D | 0.625 | 1.732 | 0.984 | 0.625 | 0.625 | 3.492 | 0.750 | 0.750 | 1 |
| QS-QD-LFE0800C12D E | 0.800 | 1.614 | 0.863 | 0.750 | 0.750 | 3.579 | 0.770 | 0.750 | 2 |
| QS-QD-LFF1000C12D F | 1.000 | 1.811 | 1.063 | 0.750 | 0.750 | 3.780 | 0.770 | 0.750 | 2 |
| QS-QD-LFF1000C16D F | 1.000 | 2.063 | 1.063 | 1.000 | 1.000 | 4.370 | 1.020 | 1.000 | 2 |
| QS-QD-LFG1000C12D G | 1.000 | 1.811 | 1.063 | 0.750 | 0.750 | 3.780 | 0.770 | 0.750 | 2 |
| QS-QD-LFG1000C16D G | 1.000 | 2.063 | 1.063 | 1.000 | 1.000 | 4.370 | 1.020 | 1.000 | 2 |
| QS-QD-LFG1300C16D G | 1.300 | 2.363 | 1.363 | 1.000 | 1.000 | 4.669 | 1.020 | 1.000 | 3 |
| QS-QD-LFH1300C12D H | 1.300 | 2.110 | 1.362 | 0.750 | 0.750 | 4.079 | 0.770 | 0.750 | 3 |
| QS-QD-LFH1600C16D H | 1.600 | 2.663 | 1.663 | 1.000 | 1.000 | 4.969 | 1.020 | 1.000 | 3 |
| QS-QD-LFK1600C16D K | 1.600 | 2.663 | 1.663 | 1.000 | 1.000 | 4.969 | 1.020 | 1.000 | 3 |
| QS-QD-RFD0625C12D D | 0.625 | 1.732 | 0.984 | 0.625 | 0.625 | 3.492 | 0.750 | 0.750 | 1 |
| QS-QD-RFE0800C12D E | 0.800 | 1.614 | 0.863 | 0.750 | 0.750 | 3.579 | 0.770 | 0.750 | 2 |
| QS-QD-RFE1000C16D E | 1.000 | 2.063 | 1.063 | 1.000 | 1.000 | 4.370 | 1.020 | 1.000 | 2 |
| QS-QD-RFF1000C12D F | 1.000 | 1.811 | 1.063 | 0.750 | 0.750 | 3.780 | 0.770 | 0.750 | 2 |
| QS-QD-RFF1000C16D F | 1.000 | 2.063 | 1.063 | 1.000 | 1.000 | 4.370 | 1.020 | 1.000 | 2 |
| QS-QD-RFG1000C12D G | 1.000 | 1.811 | 1.063 | 0.750 | 0.750 | 3.780 | 0.770 | 0.750 | 2 |
| QS-QD-RFG1000C16D G | 1.000 | 2.063 | 1.063 | 1.000 | 1.000 | 4.370 | 1.020 | 1.000 | 2 |
| QS-QD-RFG1300C16D G | 1.300 | 2.363 | 1.363 | 1.000 | 1.000 | 4.669 | 1.020 | 1.000 | 3 |
| QS-QD-RFH1300C12D H | 1.300 | 2.110 | 1.362 | 0.750 | 0.750 | 4.079 | 0.770 | 0.750 | 3 |
| QS-QD-RFH1600C16D H | 1.600 | 2.663 | 1.663 | 1.000 | 1.000 | 4.969 | 1.020 | 1.000 | 3 |
| QS-QD-RFJ1600C16D J | 1.600 | 2.663 | 1.663 | 1.000 | 1.000 | 4.969 | 1.020 | 1.000 | 3 |
| QS-QD-RFK1600C16D K | 1.600 | 2.663 | 1.663 | 1.000 | 1.000 | 4.969 | 1.020 | 1.000 | 3 |
| QS-QD-LFB0375C06S B | 0.375 | 1.000 | 0.375 | 0.375 | 2.756 | 0.375 | 0.375 | 1 | |
| QS-QD-LFB0375C08S B | 0.375 | 1.000 | 0.500 | 0.500 | 2.756 | 0.500 | 0.500 | ||
| QS-QD-LFC0500C10S C | 0.500 | 1.000 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | ||
| QS-QD-LFD0625C10S D | 0.625 | 1.000 | 0.625 | 0.625 | 2.756 | 0.625 | 0.625 | 1 |
R = Right hand, L = Left hand
