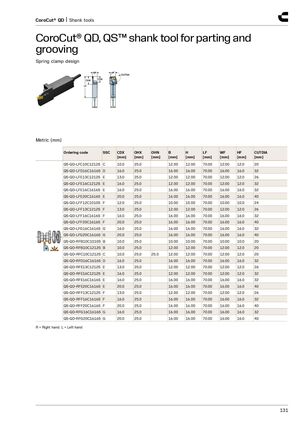

grooving
Spring clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QS-QD-LFC10C1212S C | 10.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 20 | |
| QS-QD-LFD16C1616S D | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-LFE13C1212S E | 13.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 26 | |
| QS-QD-LFE16C1212S E | 16.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 32 | |
| QS-QD-LFE16C1616S E | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-LFE20C1616S E | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 | |
| QS-QD-LFF12C1010S F | 12.0 | 25.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 24 | |
| QS-QD-LFF13C1212S F | 13.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 26 | |
| QS-QD-LFF16C1616S F | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-LFF20C1616S F | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 | |
| QS-QD-LFG16C1616S G | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-LFG20C1616S G | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 | |
| QS-QD-RFB10C1010S B | 10.0 | 25.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 20 | |
| QS-QD-RFB10C1212S B | 10.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 20 | |
| QS-QD-RFC10C1212S C | 10.0 | 25.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 20 |
| QS-QD-RFD16C1616S D | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-RFE13C1212S E | 13.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 26 | |
| QS-QD-RFE16C1212S E | 16.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 32 | |
| QS-QD-RFE16C1616S E | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-RFE20C1616S E | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 | |
| QS-QD-RFF13C1212S F | 13.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 26 | |
| QS-QD-RFF16C1616S F | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-RFF20C1616S F | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 | |
| QS-QD-RFG16C1616S G | 16.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 32 | |
| QS-QD-RFG20C1616S G | 20.0 | 25.0 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 40 |
R = Right hand, L = Left hand
