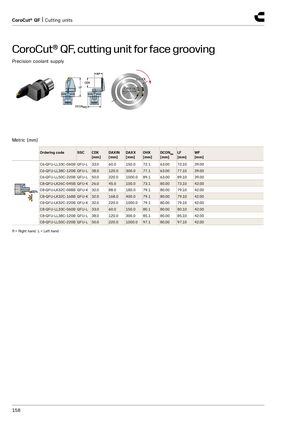

CoroCut® QF | Cutting units
CoroCut® QF, cutting unit for face grooving
Precision coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] |
| C6-QFU-LL33C-060B | QFU-L | 33.0 | 60.0 | 150.0 | 72.1 | 63.00 | 72.10 | 39.00 |
| C6-QFU-LL38C-120B | QFU-L | 38.0 | 120.0 | 300.0 | 77.1 | 63.00 | 77.10 | 39.00 |
| C6-QFU-LL50C-220B | QFU-L | 50.0 | 220.0 | 1000.0 | 89.1 | 63.00 | 89.10 | 39.00 |
| C8-QFU-LK26C-045B | QFU-K | 26.0 | 45.0 | 100.0 | 73.1 | 80.00 | 73.10 | 42.00 |
| C8-QFU-LK32C-088B | QFU-K | 32.0 | 88.0 | 180.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFU-LK32C-168B | QFU-K | 32.0 | 168.0 | 400.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFU-LK32C-220B | QFU-K | 32.0 | 220.0 | 1000.0 | 79.1 | 80.00 | 79.10 | 42.00 |
| C8-QFU-LL33C-060B | QFU-L | 33.0 | 60.0 | 150.0 | 80.1 | 80.00 | 80.10 | 42.00 |
| C8-QFU-LL38C-120B | QFU-L | 38.0 | 120.0 | 300.0 | 85.1 | 80.00 | 85.10 | 42.00 |
| C8-QFU-LL50C-220B | QFU-L | 50.0 | 220.0 | 1000.0 | 97.1 | 80.00 | 97.10 | 42.00 |
R = Right hand, L = Left hand
